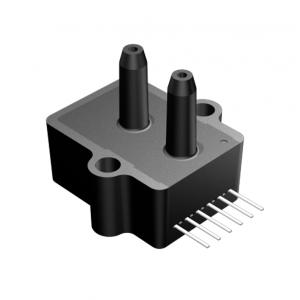

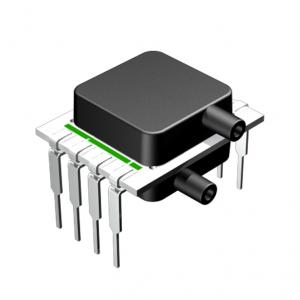

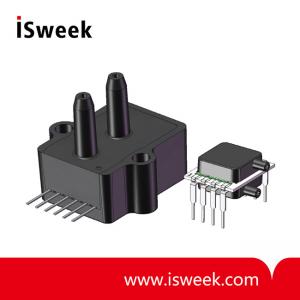

MLV Series Low Voltage Pressure Sensors - MLV-L01D/MLV-005D

? 1 inH2O to 150 PSI Pressure Ranges
? Supply Voltage: 12 Vdc
? Lead Temperature (soldering 2-4 sec.): 270 °C
? Compensated Temperature: 0°C to 50°C
? Operating Temperature: -25°C to 85 °C?
? Storage Temperature: -40°C to 125 °C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: MLV-L01D/MLV-005D
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MLV Series Low Voltage Pressure Sensors General Description
The MLV Series Compensated Sensor is based on All Sensors' CoBeam Technology. The device provides a high output signal at a low operating voltage while maintaining comparable output levels to traditional equivalent compensated millivolt sensors operating at higher voltages. This lower supply voltage gives rise to improved warm-up shift while the CoBeam2 TM Technology itself reduces package stress susceptibility resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to conventional single die devices.

These calibrated and compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. A protective parylene coating is optionally available for moisture/harsh media protection. The output is also ratiometric to the supply voltage and designed to operate at 5.0 volts DC.

MLV Series Low Voltage Pressure Sensors Features
? 1 to 30 inH2O & 5 to 150 PSI Pressure Ranges
? 5V Operation
? High Output
? Low Power Consumption
? Excellent Position Sensitivity
? Low Warm-Up Shift
? Enhanced Front to Back Linearity
? Protective Parylene Coating Option

MLV Series Low Voltage Pressure Sensors Applications
? Medical Breathing
? Environmental Controls
? HVAC
? Industrial Controls
? Portable/Hand-Held Equipment

MLV Series Low Voltage Pressure Sensors

Pressure Sensor Maximum Ratings		Environmental Specifications
Supply Voltage (Vs)	12 Vdc	Temperature Ranges
Common Mode Pressure		Compensated	0°C to 50°C
InH2O Devices (L01, L02, L05, L10, L20, L30)	10 psig	Operating	-25°C to 85 °C
PSI Devices (005, 015, 030, 100, 150)	50 psig	Storage	-40°C to 125 °C
Lead Temperature (soldering 2-4 sec.)	270 °C	Humidity Limits	0 to 95% RH (non condensing)

MLV Series Low Voltage Pressure Sensors Standard Pressure Ranges

Device	Operating Range	Proof Pressure	Burst Pressure	Nominal Span
MLV-L01D	±1 inH2O	100 inH2O	300 inH2O	7 mV
MLV-L02D	±2 inH2O	100 inH2O	300 inH2O	10 mV
MLV-L05D	±5 inH2O	200 inH2O	300 inH2O	15 mV
MLV-L10D	±10 inH2O	200 inH2O	300 inH2O	20 mV
MLV-L20D	±20 inH2O	200 inH2O	500 inH2O	20 mV
MLV-L30D	±30 inH2O	200 inH2O	800 inH2O	20 mV
MLV-005D	±5 PSI	10 PSI	30PSI	25 mV
MLV-015D	±15 PSI	60 PSI	120 PSI	37.5 mV
MLV-015A	0 - 15 PSIA	60 PSI	120 PSI	37.5 mV
MLV-030D	±30 PSI	90 PSI	150 PSI	37.5 mV
MLV-100D	±100 PSI	200 PSI	250 PSI	41.67 mV
MLV-150D	±150 PSI	200 PSI	250 PSI	37.5 mV
