ORP-combined Shallow Water Sensor - OEM Version - ORP

Measuring range?: +/- 2,000 mV?
Accuracy?: +/- 1 mV?
Resolution?: approx. 1 mV?
Pressure range?: up to 1,200 dbar?
Output?: 0 to 5 V DC (others on request)?
?Input voltage?: 9 to 30 V DC (not included)?
Response time?: 1 second (63% of reading)?

Model Number: ORP
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

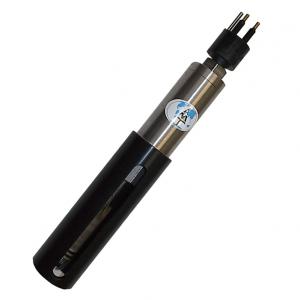

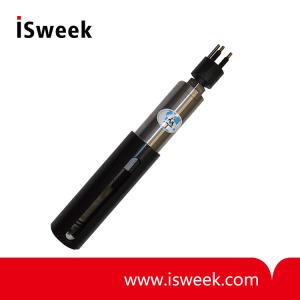

ORP-combined Shallow Water Sensor - OEM Version
Platinum and reference electrode in one housing - for depths of up to 1,200 m

The ORP-combined shallow water sensor with integrated electronic device has been developed above all for interfacing with existing CTD probe systems. The sensor consists of a pressure balanced platinum electrode and a reference electrode (Ag/AgCl) in a plastic rod. It is equipped with a ceramic diaphragm containing a high number of pores. The electrolyte is a KCl containing gel without silver ions to allow also measurements in H2S and sulphide containing samples.

The ORP shallow water sensor is equipped with a titanium housing including the electronic device, with a plastics protection cage and a BH 4 M SUBCONN titanium connector. On own risk the protection cage could be screwed off. The sensor has to be calibrated by the customer itself (calibration on request). All electrodes are delivered with wetting cap containing pH 4 buffer/KCl and covering the measuring end.

ORP-combined Shallow Water Sensor Main features:

Measuring range	+/- 2,000 mV
Accuracy	+/- 1 mV
Resolution	approx. 1 mV
Pressure range	up to 1,200 dbar
Dimensions	length over all: 240 mm diameters: max. 37 mm (with protection cage)
Connector	BH 4 M SUBCONN, titanium, others on request
Output	0 to 5 V DC (others on request)
Input voltage	9 to 30 V DC (not included)
Response time	1 second (63% of reading)
