Point Combustible Gas Detector - BJ-86-3A

? Detection of gas: Liquefied natural gas
? Detection method: FIGARO semiconductor gas sensor
? Power source?: DC24V ± 15%?
? Power consumption: 2.5W or less
? Alarm: red light, the alarm sound over 70dB
? Temperature: -10 ~ 55°C

Model Number: BJ-86-3A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

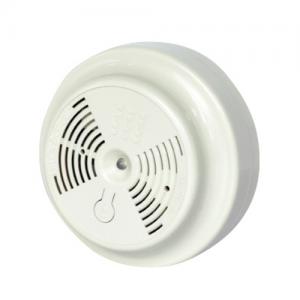

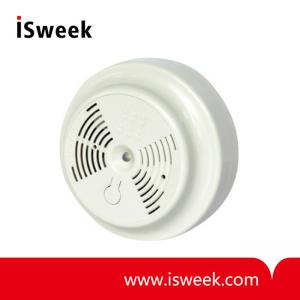

Point Combustible Gas Detector

BJ-86-3A Combustible Gas Detector Detection of gas:
Liquefied natural gas
Other

BJ-86-3A Combustible Gas Detector Technical Parameters

Detection method	FIGARO semiconductor gas sensor
Alarm concentration	20% of the lower flammable limit or less (natural gas, liquefied petroleum gas)
Mating systems	JK-S02-1 / JK-S02-2 JK-P06-1 / JK-S08 Other
Power source	DC24V ± 15%
Power consumption	2.5W or less
Alarm	red light, the alarm sound over 70dB
Fault alarm	(Gas sensor failure alarm fault) Yellow light
Alarm output	Relay contact output (AC220V, DC 24V, MAX / A, ordering optional)
Output delay	20 seconds (± 5 seconds) alarm output (according to user requirements change)
Connection controller	JK-S02-1; JK-S02-2; JK-P06-1; JK-S08; other
Temperature	-10 ~ 55°C
Size & Weight	φ104 x H45mm, about 200g
Subsidiary products	Screw two, up tube 2
Executive Standard	GB15322
