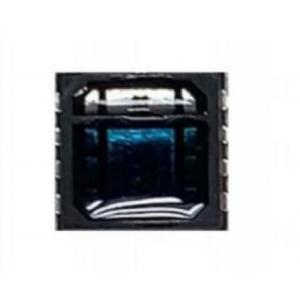

Range sensor IC - WH APS 4517V
>I?C interface (Fast Speed Mode at 400kHz/s)?
?>Supply voltage range from 2.4V to 3.6V
>Operating temperature from-40°℃ to +85C
- Model Number: WH APS 4517V
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The WH4517V is a light to digital converter which combines an advanced ambient light sensor,an advanced proximity sensor and a high efficiency infra light VCSEL. The pitch ofsensor and VCSEL is only 2.1mm,so it is suitable for small IR hole design.
Ambient light sensor(ALS) built-in an optical filter for IR rejection, and providing a spectrum which is close to the human eye's response. ALS can work from dark to direct sunlight, the selectable detect range is about 40dB.ALS has excellent light ratio under different light conditions.
Proximity sensor(PS) built-in an 940nm optical filter for ambient light immunity, so PS can detect reflected IR light with high precision and excellent rejection.
WH4517V has programmable interupt function for ALS and PS with threshold based hysteresis.
Features：
>I?C interface (Fast Speed Mode at 400kHz/s)
>Supply voltage range from 2.4V to 3.6V
>Operating temperature from-40°℃ to +85C
> Proximity Sensor
■ Ambient light immunity.
■ Selectable gain and resolution(up to 12-bit)
■ Programmable PWM and LED current.
■Inteligent crosstalk calibration.
■ Speed mode for response time Improvement.
>Ambient Light Sensor
■Spectral close to human eye response.
■ Fluorescent light flicker immunity.
■Selectable gain and resolution (up to 16-bit)
■ High sensitivity and wide detect range.
■High accuracy of illuminance &light ratio.
Applications：
■ Handset device Mobile phone, tablet, PDA, mobile POS
■ Consumer device LCD TV,digital camera, toy
■ Computing device Laptop, LCD monitor
