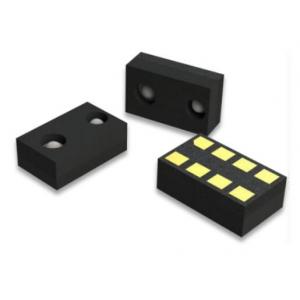

Range sensor IC - WH APS 4530A
?I2C interface (Fast Speed Mode at 400kHz/s)
?Supply voltage range from 2.4V to 3.6V
?Operating temperature from -40°C to +85°C
- Model Number: WH APS 4530A
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The WH4530A is a light to digital converter which combines an advanced ambient light sensor, an advanced proximity sensor and a high efficiency infra LED light.
Ambient light sensor (ALS) built-in an optical filter for IR rejection, and providing a spectrum which is close to the human eye’s response. ALS can work from dark to direct sunlight, the selectable detect range is about 40dB. Dual-channel output (human eye and clear), so ALS has excellent light ratio under different light conditions.
Proximity sensor (PS) built-in an 940nm optical filter for ambient light immunity, so PS can detect reflected IR light with high precision and excellent rejection.
WH4530A has programmable interrupt function for ALS and PS with threshold based hysteresis.
Features：
?I2C interface (Fast Speed Mode at 400kHz/s)
?Supply voltage range from 2.4V to 3.6V
?Operating temperature from -40°C to +85°C
?Ambient Light Sensor
?Spectral close to human eye response.
?Fluorescent light flicker immunity.
?Selectable gain and resolution (up to 16-bit).
?High sensitivity and wide detect range.
?High accuracy of illuminance & light ratio.
?Proximity Sensor
?Recommended operating distance <100cm.
?Selectable gain and resolution (up to 12-bit).
?Programmable PWM and LED current.
?Intelligent crosstalk calibration.
?Speed mode for response time Improvement.
Applications：
?Handset device Mobile phone, tablet, PDA, mobile POS
?Consumer device LCD TV, digital camera, toy
?Computing device Laptop, LCD monitor
?Smart home Smart lighting, smart curtain, night light
?Outdoor Surveillance system, street light
?Industrial Application
