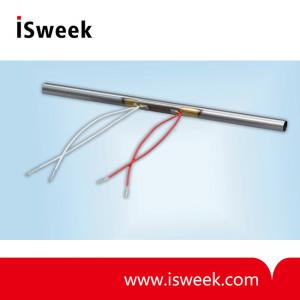

Thermal Mass Flow Sensor - P1K0/050.232.2K.C.050.M.U
? Suitable for aggressive liquids
? High chemical resistance
? No contact between sensor and liquid
? Simple flow switches possible
- Model Number: P1K0/050.232.2K.C.050.M.U
- Data Sheet:
- Quantity:
- - +
Product Specification
Further advantages of the Out of Liquid flow sensor include:
? Suitable for aggressive liquids
? High chemical resistance
? No contact between sensor and liquid
? Simple flow switches possible
The IST AG Out of Liquid flow sensors are optimal for measuring liquid flow in aggressive liquids.

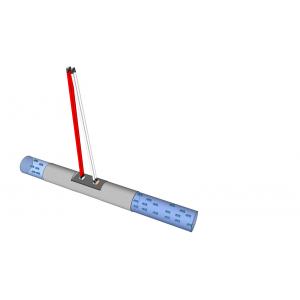

Illustration:1)
1) For actual size, see dimensions
Technical Sensor Data:
|

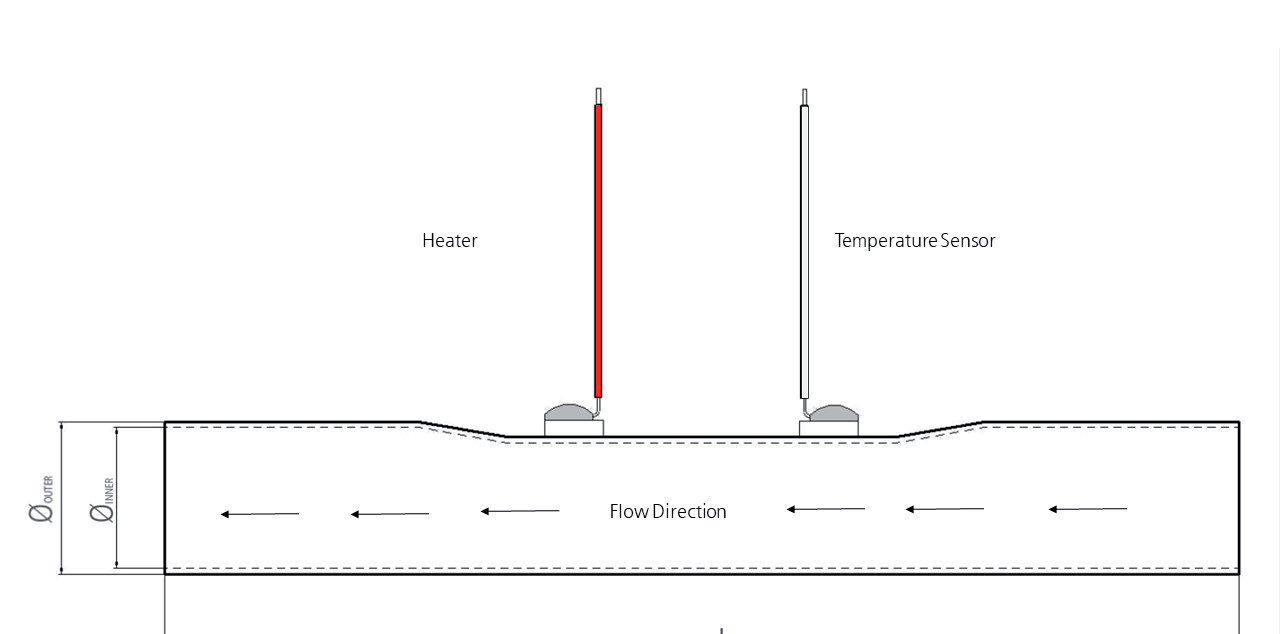

Tube dimensions (L x ?OUTER (x ?INNER) in mm)* |
40.0 x 4.0 (x 3.8) |
|
Operating temperature range |
-50℃ to +150℃ The temperature range has an impact on the accuracy, depending on variations in the thermal properties of flowing media |
|
Heater resistance* |
RH (0℃) = 50 Ω (red wires) |
|
Temperature sensor resistance* |
Rs (0℃) = 1000 Ω (white wires) |
|
Operating measuring range |
0 ml/min to 3000 ml/min (4 m/s) |
|
Characteristics curve (TCR) |
3850 ppm/K |
|
Accuracy |
IEC 60751 F0.6 (class C) |
|
Sensor wire* |
Cu/Ag, stranded wires PTFE isolated, AWG 30/19, 50 mm |
|
Measurement frequency |
1 kHz to 100 kHz (recommended 10 kHz) |
|
Sensor dimensions (L x W x H x LW in mm) |
2.3. x 2.0 x 1.3 |
|
Tube Material* |
Stainless steel 1.4301/304 |
*customer specific versions on request
