Thermopile Temperature Sensor - MTP10-B6F55-L11(Si-A)
? MEMS Thermopile Element
? High Sensitivity
? 5.5um LWP Filter
? Silicon Lens
? High Accuracy NTC
? DS Ratio 8:1
- Model Number: MTP10-B6F55-L11(Si-A)
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Features:
? MEMS Thermopile Element
? High Sensitivity
? 5.5um LWP Filter
? Silicon Lens
? High Accuracy NTC
? DS Ratio 8:1
Applications:
? Non-contact Temperature Measurements
? Home Appliance Temperature Measurements
? Continuous Temperature Control of Manufacturing
? Industrial Remote Temperature Measurement

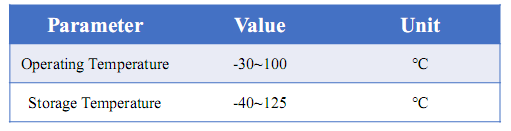

Absolute Maximum Rating：

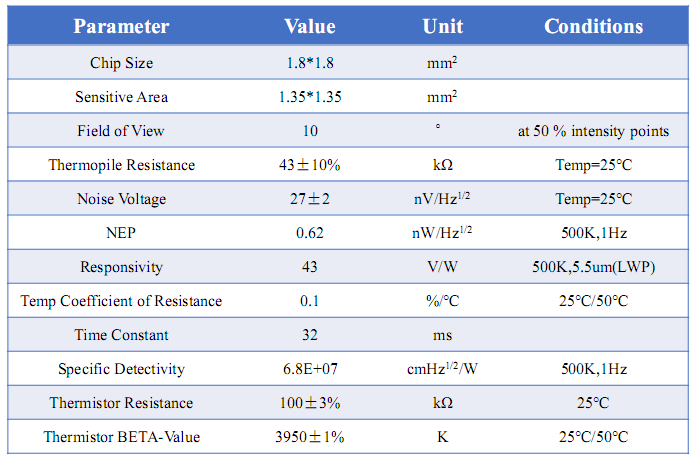

Performance Specification：

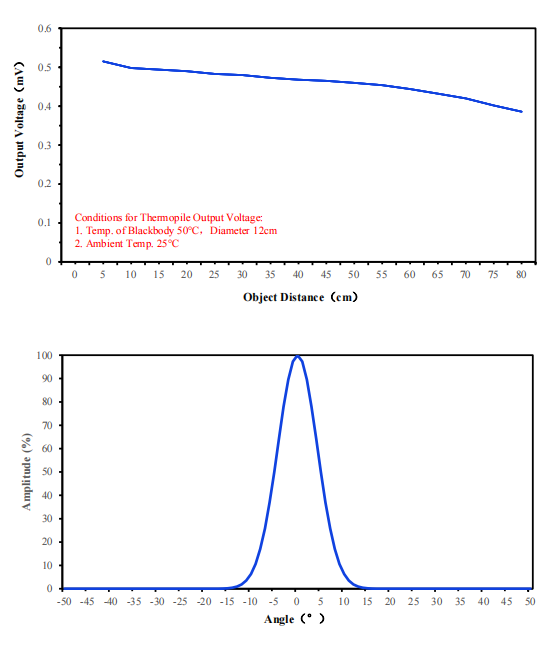

Typical Performance Curve：
Mechanical Dimension：
