UV Sensors - SUV13/SUV20
? Screw-in sensor SUV13 with teflon head
? Plug-in sensor SUV20 with measuring window
? Housing material?: High-grade steel?
? Opening angle?: 30°, 40°, 160°, 360°?
? Output signal?: Diode, Current (4-20mA), Voltage (0-4,5VDC), Digital?
? Optional standards?: DVGW, ?NORM?
- Model Number: SUV13/SUV20
- Data Sheet:
- Quantity:
- - +
Product Specification
SUV13/SUV20 UV Sensors Description
Our UV-sensors are available in different designs and are suitable for operation in air as well as water systems.
For use in drinking water equipment, we supply sensors that conform to the DVGW or ?NORM regulations.
The UV-sensors are made for relative and absolute measuring. Absolute measuring sensors are calibrated individually and allow a reliable UV-measurement from all distances to the radiation source.
Our UV-sensors can be configured to our customer's needs.
SUV13/SUV20 UV Sensors Designs

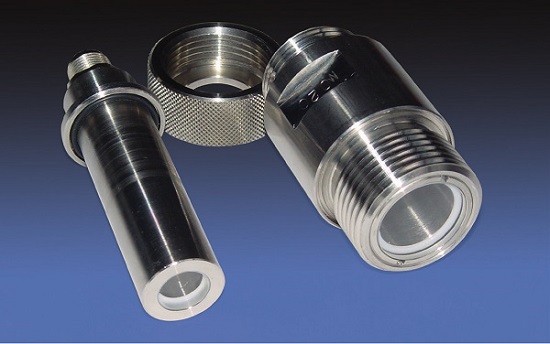

The UV-sensors are available as 'screw-in' or 'plug-in' types. Because of their compact design and huge variety of possible configurations, the sensors can be installed in new or retrofit systems.
Screw-in sensor SUV13 with teflon head
Plug-in sensor SUV20 with measuring window
SUV20-sensors can be supplied with an ATEX-protection certificate as an option.
SUV13/SUV20 UV Sensors Technical Data
Housing material
High-grade steel
Opening angle
30°, 40°, 160°, 360°
Output signal
Diode
Current (4-20mA)
Voltage (0-4,5VDC)
Digital
Optional standards
DVGW, ?NORM
