1kg to 50kg Load Cell - TCA

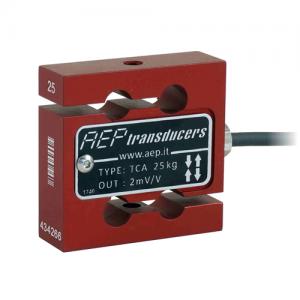

1kg to 50kg Load Cell TCA
Nominal Load from 1kg to 50kg
Linearity: 0.03%
Output: 2mV/V
Protection: IP67
- Model Number: TCA
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
TCA
1kg to 50kg Load Cell
ALUMINIUM strain gages Load cell for the measurement of static and dynamic loads in COMPRESSION and TENSION
Dimensions [mm]
Technical Data
|
NOMINAL LOAD |
1(1) - 2(1) - 5(1) kg(2)
10 - 25 - 50 kg(2)
|
|
NOMINAL SENSITIVITY SENSITIVITY TOLERANCE |
2 mV/V ≤ ± 0.1% |
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ± 0.025 % |
|
LINEARITY HYSTERESIS REPEATABILITY |
≤ ± 0.03 % ≤ ± 0.03 % ≤ ± 0.01 % |
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
440 ± 20 ? 350 ± 2 ? >5 G? ≤ ± 1 % 10 V 1-15 V 18 V |
|
MECHANICAL LIMIT VALUES REFERRED TO NOMINAL LOAD: a) service load b) max permissible load c) breaking load d) max transverse load e) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
120 %
150 % |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23 °C -10 / +40 °C -20 / +70 °C -20 / +80 °C |
|
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
～ 0.3 kg IP20 Alluminio / Aluminium 3 m |
|
RECOMMENDED KNUCKLE JOINTS |
DURBAL EM6 |
(2) N calibrations on request
