350kg to 20t Amplified Load Cell - TCEAMP

350kg to 20t Load Cell Load Cell TCEAMP
Linearity: 0.03%
Material: Stainless Steel
Output: 4-20mA, 5Volt, 10Volt
LASER welded
Protection: IP67

Mouse over image to zoom

TCEAMP

4-20mA, 5Volt, 10Volt Output 350kg to 20t Load Cell

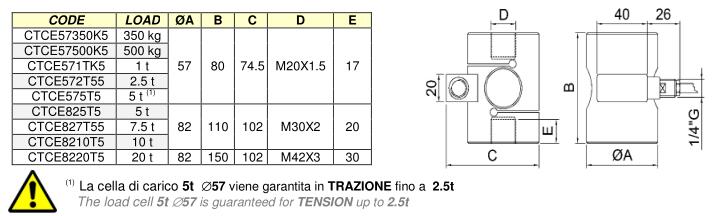

Dimensions [mm]

Technical Data

ACCURACY	0.03%
NOMINAL LOAD	350 - 500 kg 1 - 2.5 - 5 (1) -7.5 -10 -20 t
NOMINAL SENSITIVITY CALIBRATION TOLERANCE	4-20 mA (3 wires), ±5V or ±10V <±0.1%
NON LINEARITY NON REPEATABILITY	≤ ±0.03% ≤ ±0.03%
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity	≤ ±0.030% ≤ ±0.011%
NOMINAL POWER SUPPLY	4-20mA and ±5V → 12-24Vdc ±10V → 18-24Vdc
MAX. POWER SUPPLY MAX. ABSORPTION (without load applied) LOADING RESISTANCE: a) tension b) current INSULATION RESISTANCE ZERO BALANCE	28Vdc 30mA min. 3K? from 0 to 470? >2 G? ± 1%
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD	0% 120% 150% >300% 100% 50% ～ 0.3 mm
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE	+23°C -10/+40 °C -20/+70 °C -20/+80 °C
WEIGHT PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH	?57:～1.5 kg ?82:～4.2 kg 20t:~5kg IP67 Acciaio Inox / Stainless Steel 5m
RECOMMENDED KNUCKLE JOINTS	DURBAL EM 20 – EM 30 – EM 42

Option

CONNECTOR OUTPUT	MIL-C-26482 6 Poles Male connector
CONNECTOR OUTPUT	M12 4 Poles Male connector
ELECTRICAL CONNECTION	Female 4 poles straight M12x1 CONNECTOR complete PVC molded CABLE, shielded, length: 3m
