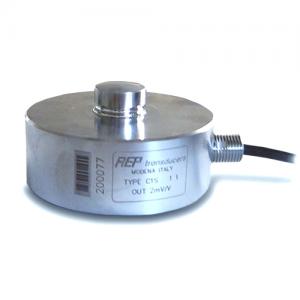

250kg to 100t Low Cost Load Cell - CBS
250kg to 100t Low Cost Load Cell CBS
Nominal Load from 250kg to 100t
Linearity: 0.03%
Combined Error: 0.03%
Material: Stainless Steel
Output: 2mV/V
Protection: IP68
- Model Number: CBS
- Data Sheet:
- Quantity:
- - +
Product Specification
CBS
250kg to 100t Low Cost Load Cell
Dimensions [mm]
Technical Data
|
NOMINAL LOAD (Emax) |
250 - 500 kg 1 - 2.5 - 5 - 7.5 - 10 -15 - 20 - 30 t 50 - 75 -100 t |
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP at nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.03%
≤ ±0.01%
≤ ±0.03%
≤ ±0.03%
≤ ±0.01%
|
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.05% |
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
|
NPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
700 ± 3 ? 700 ± 3 ? > 5 G? ≤ ±1% 10 V 1-15 V 18 V |
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% ~0.06 mm | ~0.16 mm | ~0.23 mm |
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
WEIGHT
PROTECTION CLASS (EN 60529) |
~1.2 kg | ~2.0 kg | ~3.8 kg | ~9.4 kg
IP68 (100h at 1m water column) |
