22000 Counts High Precision Desktop Digital Multimeter - MS8040

? Dual Display 22000 counts and 44 Segments Bars Graph
? Auto & Manual Ranging
? Auto Power Off
? True RMS for AC Voltage & AC Current
? Low pass filter (1kHz) for AC Voltage & AC Current
? Relative Measurement
? Peak Measurement
? Diode 2.8V

Model Number: MS8040
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

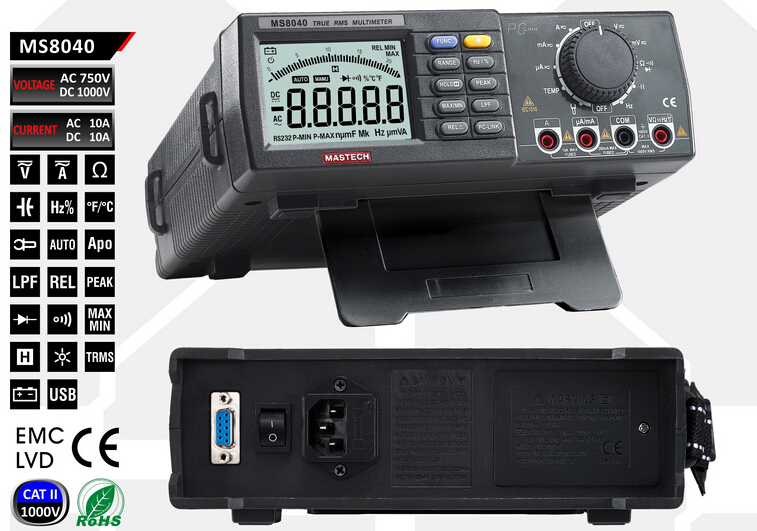

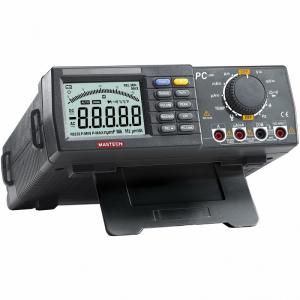

MS8040 - True RMS Benchtop Multimeter

MS8040 22000 Counts High Precision Desktop Digital Multimeter with AC True RMS & LPF & RS232 Data Communication has a wide range of applications in labs, factories, and work rooms. With high resolution for the measurement of voltage and current. The precision of DC voltage and current even reaches up to 0.05%. The MS8040 offers two power supply options and RS232 data communication interface, satisfying all your needs. And it has the low-pass filter (LPF) to effectively reduce high-frequency noise when measuring AC voltage.

MS8040 True RMS Benchtop Multimeter Features
? Dual Display 22000 counts and 44 Segments Bars Graph
? Auto & Manual Ranging
? Auto Power Off
? True RMS for AC Voltage & AC Current
? Low pass filter (1kHz) for AC Voltage & AC Current
? Relative Measurement
? Peak Measurement
? Diode 2.8V
? Continuity Buzzer <30?
? MAX/MIN
? Data Hold
? Display Backlight
? USB Interface

MS8040 True RMS Benchtop Multimeter General Specifications
? Power Supply: 220V/110V AC (50~60Hz)
? Product Size: 238mm x 230mm x 83mm / 9.4" x 9.1" x 3.3"
? Product Weight: 1500g/3.4lb
? Certification: CE / ETL / RoHS
? Safety Rating: CATII 1000V

MS8040 True RMS Benchtop Multimeter Specifications
