53000 Counts High Accuracy Digital Multimeter - MS8050

Product Specification

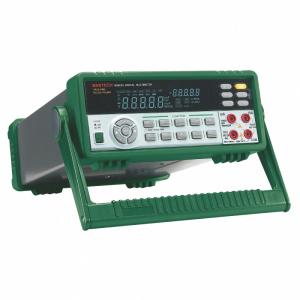

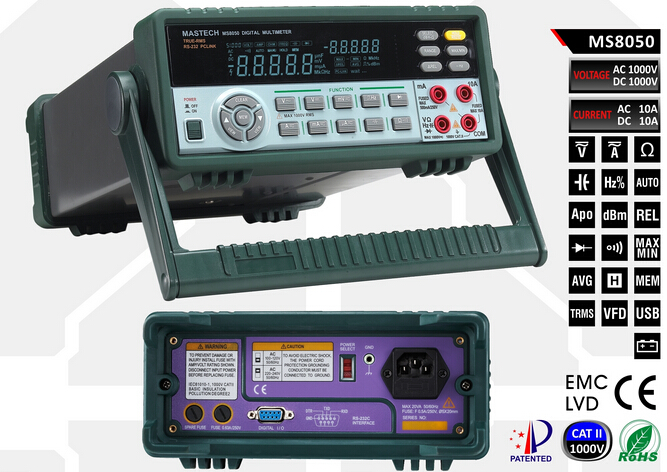

MS8050 - True RMS Benchtop Multimeter

MS8050 is a bench model DMM product that has high accuracy and high stability. It can operate for several ten measurement functions. It's five digits count up to 53000. Not only DC, AC RMS, but DC and AC mixture signals RMS can be measured for 1000V or 10A. The resolution of DCV is 1uV and the frequency band of voltage or current is about 20kHz.It has a memory function up to 30 full screens for saving test data, has a color fluorescent double digital display screen. The meter has a light-coupling RS-232C interface and a computer software, can display, draw, record all test processes on a computer. The graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters. MS8050 together with a computer becomes a very useful measurement recorder. The protection functions against some error operations get its safety characteristic guaranteed. It is the best choice for factories, science research organizations, and laboratories in universities.

MS8050 True RMS Benchtop Multimeter Features
? Display VFD 53000 counts
? Auto & Manual Ranging
? Auto Power Off
? True RMS
? dBm Measurement
? Relative Measurement
? Diode Open Voltage 3.3V
? Continuity Buzzer <50±20?
? MAX/MIN/AVG
? Data Hold
? Data Logging 30 groups
? PC Analysis Software
? USB Interface

MS8050 True RMS Benchtop Multimeter General Specifications
? Power Supply: 220V/110V AC
? Product Size: 350mm x 240mm x 100mm / 13.8" x 9.5" x 3.9"
? Product Weight: 2500g/5.5lb
? Certificate: RoHS
? Safety Rating: CAT II 1000V

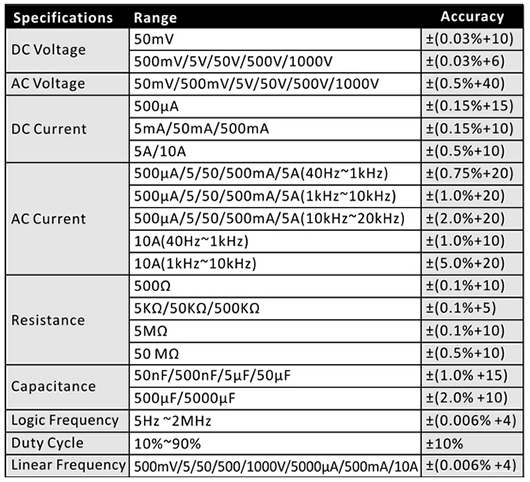

MS8050 True RMS Benchtop Multimeter Specifications
