Digital Insulation Tester - MS5203/MS5203A
? Insulation Measurement Range: 0.01 MΩ to 10.00 GΩ
? Insulation Test Voltages: 50, 100, 250, 500, 1000 V
? Insulation Source?Voltage: +20 %, - 0 %
? Insulation Short-Circuit Test Current: 1.8mA nominal
? Power Supply: 6 x 1.5V AA Batteries
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V / CAT IV 600V
? Operating Temperature: 0 to 40°C
- Model Number: MS5203/MS5203A
- Data Sheet:
- Quantity:
- - +
Product Specification

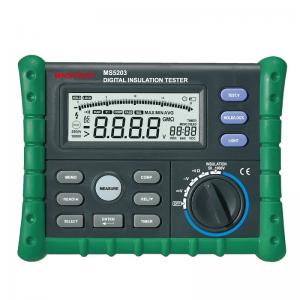

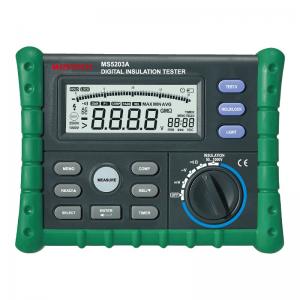

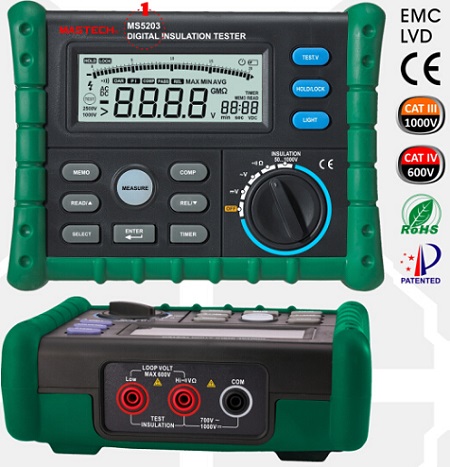

MS5203/MS5203A - Digital Insulation Tester
The Tester for insulation resistance with test voltage up to 1000V, insulation resistance up to 10G ohm, Short current up to 1.8mA, continuity, and voltage test functions. The tester performs the automatic calculation of polarization index of dielectric PI and dielectric absorption ratio DAR.
MS5203 Digital Insulation Tester Features
? Auto Power Off
? MIN/MAX/AVG
? Compare function
? ΤΙΜΕR
? Storage function
? DAR/PASS
? Backlight
? Relative Measurement
? Data Hold
? Low Battery Display
MS5203 Digital Insulation Tester General Specifications
? Power Supply: 6 x 1.5V AA Batteries
? Product Size: 200mm x 155mm x 76mm / 7.6" x 5.9" x 2.95"
? Product Weight: 900g/1.98lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V / CAT IV 600V

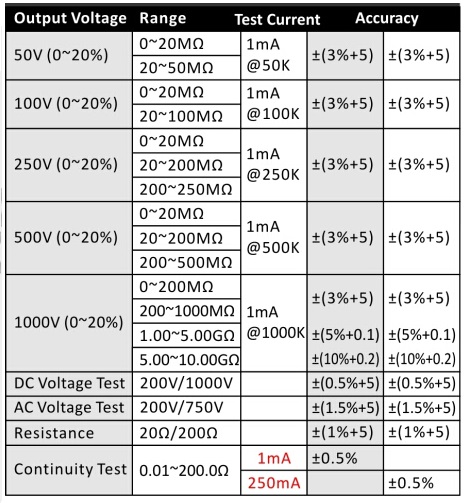

MS5203 Digital Insulation Tester Specifications
