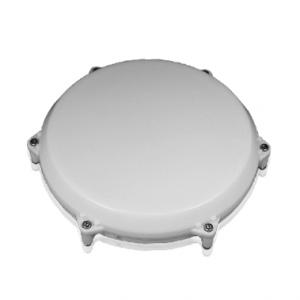

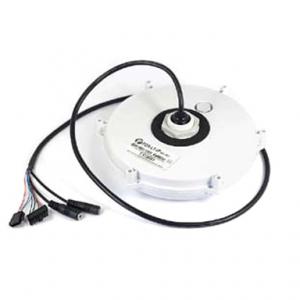

Automotive Vehicle Location solution (AVL) - DISCO-B4

IP69K proof casing
High Sensivity Satellite Navigation (50 channel u-blox 5 engine)
A-GPS capable
Communication via Quad Band GSM
SMS, Data, GPRS, TCP/IP, E-mail
Thief Alert / Motion Detection
Fleetmanagement
Car Security and Recovery
Drivers Logbook/History
Territory Management / Geofencing
Remote administration & firmware update
Fully approved (CE, e1, FCC,)

  • Model Number: DISCO-B4
Quantity:
- +
  • Automotive Vehicle Location solution (AVL)
  • Automotive Vehicle Location solution (AVL)
Mouse over image to zoom
Share:

Product Specification

Automotive Vehicle Location Solution AVL System- DISCO-B4


DISCO-B4 is a free configurable smart tracking device which can be fully adapted to user requirements. Its main purpose is to act as a mobile client for various system solutions like AVL, fleet management, vehicle security and recovery. The device can operate fully autonomous and is able to interact using sensors and actors. It can be adapted to existing tracking solutions and can be easily configured to gather or exchange relevant information with servers or users directly. An often used example is to send status reports or verbose alert messages directly via SMS to users and/or via TCP to tracking servers.?

Users benefit most from combining comfort and security aspects for example having regular voice calls as well as spy calls in emergency cases. Drivers logbook and data logging functionalities are combined in the history feature. Geofencing can be used to report violations of predefined routes or areas (for example if a car enters or leaves a specific area-go-zones). All of these features are perfectly integrated in a device concept which significantly reduces timetomarket and provides low cost tracking and security solutions.




Available options for DISCO-B4

CAN / FMS?interface

For the complete list of options and accessories please contact us.


Facts

GSM/GPRS core Quad-band module
850/900/1800/1900 MHz
GPRS class 10, class B
Embedded TCP/IP stack (accessible via PFAL commands)
Supported Internet Protocols (TCP/IP/UDP/HTTP/SMTP)
GPS core 50 channel GPS receiver
AGPS Offline / Autonomous
Protocols: NMEA, FALCOM (binary)
Accuracy:
- Position < 2.5 m
- SBAS < 2 m
Acquisition:
- TTFF hot start: < 1 s average
- TTFF cold start: < 29 s average
Sensitivity:
- Acquisition: - 160 dBm
- Tracking: - 160 dBm (12 dBHz)
- Cold start: - 144 dBm
Limits:
- Velocity: 500 m/s (972 knots)
- Altitude: 50.000 m
Processor core ARM7/TDMI
8 MB Flash / 2 MB RAM
Electrical characteristics Power: +10,8 V to +32 V DC
Internal Lithium-Ion rechargable battery (2150 mAh)*
Power saving 7 different energy-saving modes (programmable with PFAL commands)
Physical characteristics Dimensions (DxH): 187 x 47 mm
Weight: approx. 470 g
Temperature range** Storage: -40 °C to +85 °C
Operating: -40 ° to +85 °C
GSM: -40 °C to +85 °C
Battery option: -20 °C to +60 °C
Charging: 0 ° to +45 °C
Motion sensor 3-axis motion sensor
Interfaces 4 IOs
- 3 configurable digital/analoge inputs with open collector output (100 mA) / (2 are used for CAN feature)
- 1 digital input (IGN)
RS232 (RX, TX V24 level)
SIM card reader for 1,8/3 V SIM cards
CAN/FMS* (up to 1 Mbps)
Audio Jacks for voice call (1 x Microphone; 1 x Speaker)
Antennas internal GSM/GPS antennas

____________________________________

* optional availbale
** Note that extreme temperatures can affect device performance.

?
