Product Specification

DISCO-B5-MAGNET

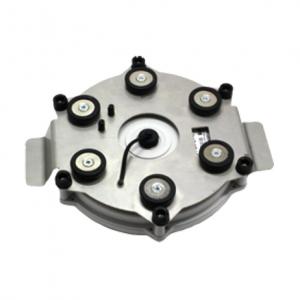

The advanced asset tracking unit with magnetic base plates or mast holder for boats

    * Quad-Band GSM/GPRS technology for 2-way communication
    * Latest GPS technology for precise positioning
    * High durable IP67 weatherproof casing
    * Easy installation and minimal maintenance
    * Roof-mount unit, magnetic base plates and rubberized feet
    * Designed for use on cars, trucks, trains, vessels and other assets
    * Long battery life, internal battery pack (5x2250 mAh)
    * Battery operating for several days without recharging
    * Assembled by special security screws
    * Very-efficient power saving modes
    * Customized firmware configuration and protocols
    * Different communication channels
    * Remote activation, configuration and administration

DISCO-B5-MAGNET is a free configurable smart tracking device which can be fully adapted to different user needs. Using a Quad-Band GSM/GPRS technology for two way worldwide communication, the latest GPS technology for positioning, a high-capacity Lithium-Ion rechargeable battery, and housed in a weatherproof plastic case, the device is suitable for a wide range of outdoor applications in the asset tracking, security and recovery and transit sectors. The device has a protection class IP67, which allows mounting of the device permanently on the roof of the assets including buses, trucks, trains, vessels and other assets. The unit mounts to your assets with ist magnetic base plates, and its rubberized feet keep it from scratching your paint. The device can operate fully autonomous.

DISCO-B5-MAGNET can be adapted to existing tracking solutions and can be easily configured to gather or exchange relevant information with servers or users directly. An often used example is sending the status reports or alarm messages directly to the users via SMS and/or to the tracking servers via TCP/UDP/HTTP/SMTP. Drivers logbook and data logging functionalities are combined in the history feature. Geofencing can be used to report violations of predefined routes or areas (for example if a car enters or leaves a specific area or deviate a specific route). All of these features are perfectly integrated in a device concept which significantly reduces time-to-market and provides low cost tracking and security solutions.

TECHNICAL SPECIFICATION

____________________________________

*   Optional

**  The GSM/GPRS module is fully functional (-30 °C to + 85 °C meets ETSI specification)
