Automotive Vehicle Location Solution AVL Tracking System - STEPPIII-UX

High Sensivity Satellite Navigation (50 channel u-blox 5 engine)
AGPS capable
Communication via Quad Band GSM (SMS, Voice, Data, GPRS, TCP/IP, E-mail)
Fully customizable behaviour
Car Security and Recovery / Thief Alert / Motion Detection
Online Tracking / Drivers Logbook / History
Territory Management / Geofencing
Remote administration & firmware update
Fully approved (FCC, PTCRB, e1, CE)
Additional IO Ports
Motion Sensor

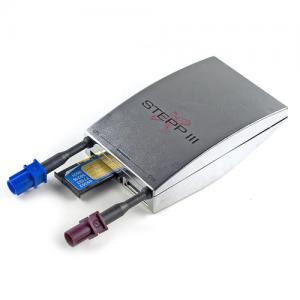

Model Number: STEPPIII-UX

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Automotive Vehicle Location Solution AVL Tracking System- STEPPIII-UX

? High Sensivity Satellite Navigation (50 channel u-blox 5 engine)
? AGPS capable
? Communication via Quad Band GSM (SMS, Voice, Data, GPRS, TCP/IP, E-mail)
? Fully customizable behaviour
? Car Security and Recovery / Thief Alert / Motion Detection
? Online Tracking / Drivers Logbook / History
? Territory Management / Geofencing
? Remote administration & firmware update
? Fully approved (FCC, PTCRB, e1, CE)
? Additional IO Ports
? Motion Sensor

STEPPIII-UX is a free configurable smart tracking device, which can be fully adapted to user requirements. Its main purpose is to act as a mobile client for various system solutions like AVL, fleet management, vehicle security and recovery. The device can operate fully autonomous and is able to interact using sensors and actors.

It can be adapted to existing tracking solutions and can be easily configured to gather or exchange relevant information with servers or users directly. An often used example is to send status reports or verbose alert messages directly via SMS to users and/or via TCP to tracking servers.

Users benefit most from combining comfort and security aspects for example having regular voice calls as well as spy calls in emergency cases. Drivers logbook and data logging functionalities are combined in the Falcom history feature.

Geofencing can be used to report violations of predefined routes or areas (for example if a car enters or leaves a specific area/ no-go-zones).

All of these features are perfectly integrated in a device concept, which significantly reduces time-to-market and provides low cost tracking and security solutions.

Available options for STEPPIII-UX
? CAN Interface
? Backup battery

Facts

GSM/GPRS core	Quad-band module 850/900/1800/1900 MHz GPRS class 10, class B TCP/IP (accessible via PFAL commands)
GPS core	50 channel GPS receiver AGPS Offline / Autonomous Protocols: NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84 Accuracy: - Position < 2.5 m - SBAS < 2 m Acquisition: - TTFF hot start: < 1 s average - TTFF warm satart: < 29 s average - TTFF cold start: < 29 s average Sensitivity: - Acquisition: -160 dBm - Tracking: -160 dBm (12 dBHz) - Cold start: -144 dBm Limits: - Velocity: 500 m/s (972 knots) - Altitude: 50.000 m
Processor core	ARM7/TDMI Memory: 2 MB / 512 kB
Electrical characteristics	Power: +10,8 V to +32 V DC Rechargeable Li-Polymer backup battery 1000mA *
Physical characteristics	Dimensions (L x W x H): 55 x 88 x 22 mm Weight: approx. 120 g
Temperature range**	Storage: -40 °C to +85 °C Operating: -40 ° to +85 °C GSM: -30 °C to +80 °C Battery option: -20 °C to +60 °C Charging: 0 ° to +45 °C
Motion sensor	3-axis motion sensor
Interfaces	16pin MOLEX 43045-1609: 8 inputs - 4 configurable inputs (digital or analoge) - 2 digital inputs (used for CAN feature) - IGN - DiWu - Power in/out 4 digital outputs (open collector 100 mA) 15pin AMP 5-558556-1 - RS232 (RX, TX V24 level) - RS232 (RX, TX TTL level) - Speaker, microphone SIM card reader for 1,8/3 V SIM cards GPS RF connector 50 Ohm FAKRA/Radiall GSM RF connector 50 Ohm FAKRA/Radiall 3 programmable LEDs CAN interface*
