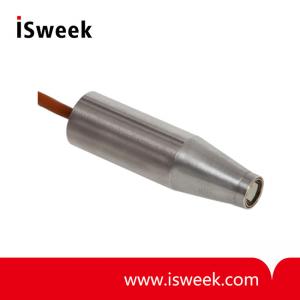

Infrared Temperature Sensors - IRt/c.2G

? Sensing Range: -50 to 1200°F (-45 to 650°C)
? Ambient Temperature: 0 to 160°F (-10 to 70°C)
? Field of View: approximately 1:1 (60°)
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size: .16" (4mm)
? Spectral Response: 2 to 20μm
? Output Impedance: 10 Kohms approx
? Response Time: 100 Milliseconds

Model Number: IRt/c.2G
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.2G Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.2G Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 1200°F (-45 to 650°C)
Ambient Temperature Range	0 to 160°F (-10 to 70°C)
Optimum Range Selection	32 to 122°F (0 to 50°C) (Human body range)
Field of View	approximately 1:1 (60°)
Minimum Spot Size	.16" (4mm)
Spectral Response	2 to 20μm
Output Impedance	10 Kohms approx
Response Time	100 Milliseconds
Dimensions	1.75" x 0.50" Dia. (44 x 12.7mm)
Housing	Stainless steal, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal
Cable	Twisted shielded pair of base thermocouple ma- terial (J), 3ft (.9m) std length, Teflon sheathed, rated to 392°F (200°C) continuous service
Weight	1.4oz. (40 grams) with cable
