Product Specification

PyroCouple, PyroEpsilon, PyroBus, PyroCAN
General Purpose Infrared Temperature Sensors

General Purpose Infrared Temperature Sensors Features
? Temperature range: -20°C to 500°C
? Choice of precision optics for large or small targets at short or long distances
? Fast response with high stability
? Stainless steel housing, sealed to IP65
? Quick and easy installation
? Wide range of accessories

General Purpose Infrared Temperature Sensors Description
The Calex Compact Series is a range of high quality, low cost non-contact sensors that measure the temperature of inaccessible or moving objects and materials. They measure temperatures from -20°C to 500°C, accurately and consistently, with an outstanding response time of 240 ms. All models conform to industrial EMC standards.

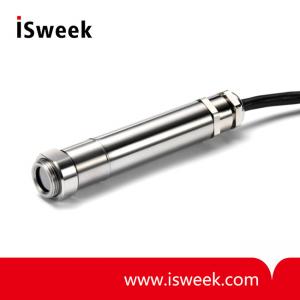

The PyroCouple is a simple infrared temperature sensor with a choice of analogue outputs. No complicated setup is required - just connect a temperature indicator and power supply, and instantly start taking measurements.
? Temperature ranges from -20°C to 500°C
? Suitable  for  non-contact temperature  measurement on most non-reflective non-metal surfaces, such as paper, thick plastics, asphalt, painted surfaces, food, rubber and organic materials, among many others.
? Choice of analogue outputs for measured temperature:
  Two-wire 4-20 mA,
  Four-wire 0-50 mV,
  Four-wire Type K, J or T thermocouple
? Additional  sensor  body temperature output on four-wire models: indicates the air temperature around the sensor and helps prevent overheating or overcooling

The PyroEpsilon is a simple sensor with an adjustable emissivity setting. It is ideal if the target is partially reflective.
? Temperature ranges from -20°C to 500°C
? Two-wire 4-20 mA output
? Emissivity adjustment via a separate two-wire 4-20 mA input
? Adjust  the  emissivity continuously  during  the process using a variable 4-20 mA source
? Set the emissivity manually with the PyroTune emissivity adjuster
? If you are not sure the emissivity of the target is high, choose the PyroEpsilon instead of the PyroCouple.

The PyroBus is a networkable, fully configurable sensor with RS485 Modbus RTU communications.
? Temperature ranges from -20°C to 500°C
? Up to 247 sensors may be connected to a single network.
? Adjustable emissivity setting for use on a wide range of materials
? Averaging function to smooth the temperature output
? Peak and valley hold processing for measuring individual objects on a conveyor
? Reflected energy compensation for accurately measuring the temperature of objects in ovens or chillers, from outside

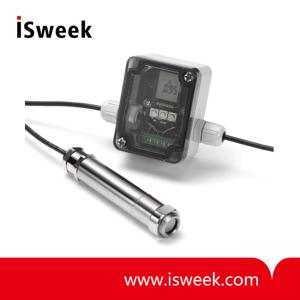

? Optional  6-channel  touch screen terminal for local display, configuration and data logging
? Connect sensors and 6-channel terminals directly to an existing RS485 Modbus system

The PyroCAN is a sensor with CAN communications.
? Temperature range: -20°C to 1000°C
? Raw CAN communications
? Adjustable emissivity setting for measuring a variety of materials
? Ideal  for  onboard  vehicle temperature monitoring, and many other applications
? Conforms with EMC standard EN 13309:2010

General Purpose Infrared Temperature Sensors GENERAL SPECIFICATIONS
