LV-MaxSonar-EZ1 High Performance Ultrasonic Rangefinder - MB1010

Product Specification

MB1010 LV-MaxSonar-EZ1
High Performance Ultrasonic Rangefinder

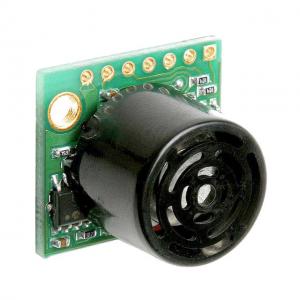

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Description

The LV?MaxSonar?EZ1 is a great choice for use where sensitivity is needed along with side object rejection.
The LV-MaxSonar-EZ1 is our most popular indoor ultrasonic sensor and is a great low-cost general-purpose sensor for a customer not sure of which LV-MaxSonar-EZ sensor to use.

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? 20Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Maximum Range of 254 inches (645 cm)
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Widest beam of the LV-MaxSonar-EZ sensors
? Our most popular indoor ultrasonic rangefinder
? Our low cost, all-around sensor that is excellent for many projects
? Best beam and sensitivity balance for the LV-MaxSonar-EZ sensors

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Features and Benefits
? Most popular ultrasonic sensor
? Low power consumption
? Easy to use interface
? Can detect people to 8 feet
? Great balance between sensitivity and object rejection
? Can be powered by many different types of power sources

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Applications and Uses
? Great for people detection
? Security
? Motion detection
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Part Numbers

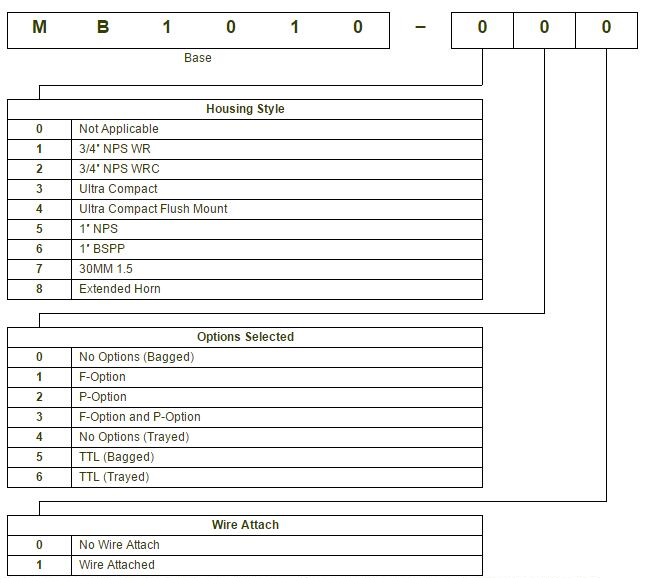

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
