XL-MaxSonar-EZ4 High Performance Ultrasonic Rangefinder - MB1240

Product Specification

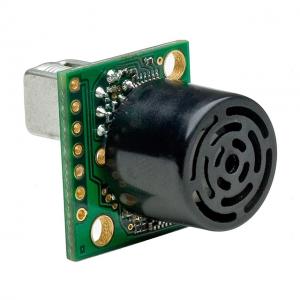

MB1240 XL-MaxSonar-EZ4
High Performance Ultrasonic Rangefinder

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Product Description
The XL-MaxSonar-EZ4 has the highest noise tolerance and narrowest beam of any of our indoor sensors. The sensor is designed and calibrated to provide reliable range information to large targets even in environments with strong acoustic or electrical noise sources.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

The XL-MaxSonar-EZ4 performance to large targets is only beaten by the MB7052.

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no dead zone, objects closer than 20 cm range as 20 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from 0℃ to +65℃ (32℉ to +149℉)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Narrowest beam of the XL-MaxSonar-EZ products
? Highest noise tolerance of the XL-MaxSonar-EZ products
? Great for large target applications
? Maximum range of 765 cm (300 inches)
? Hardware gain of 250
? Short range, narrow detection zone for small targets

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Features and Benefits
? Narrowest beam in the XL-MaxSonar-EZ/AE sensor line
? Low power consumption
? Easy to use interface
?  Large target detection
? Acoustic noise rejection
? 3.3v to 5.5v operational voltage

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Applications and Uses
? Great for people detection
? Security
? Motion detection
? Recommended for multi-copters and UAV's
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Part Numbers

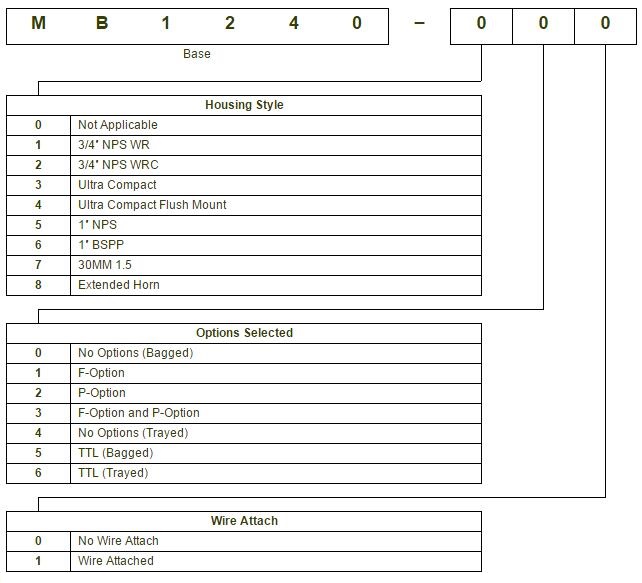

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1240-000	MB1240-040
