LV-MaxSonar-EZ3 High Performance Ultrasonic Rangefinder - MB1030

Product Specification

MB1030 LV-MaxSonar-EZ3
High Performance Ultrasonic Rangefinder

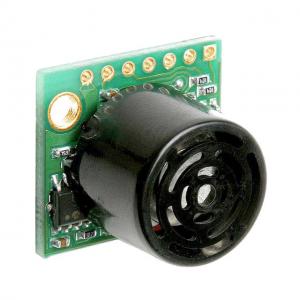

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Product Description
The LV-MaxSonar-EZ3 is a narrow beam sensor with good side object rejection. The LV-MaxSonar-EZ3 has slightly wider beam width than the MB1040 LV-MaxSonar-EZ4 which makes it a good choice for when the LV-MaxSonar-EZ4 does not have enough sensitivity for the application.

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? 20Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Maximum Range of 254 inches (645 cm)
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Narrow beam and good side object rejection
? Best for large object detection applications

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Features and Benefits
? Excellent side object rejection
? Low power consumption
? Easy to use interface
? Great for when MB1040 is not sensitive enough
? Large object detection
? Can be powered by many different types of power sources
? Can detect people up to approximately 5 feet

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Applications and Uses
? Landing flying objects
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics

MB1030 LV-MaxSonar-EZ3 Ultrasonic Rangefinder Part Numbers

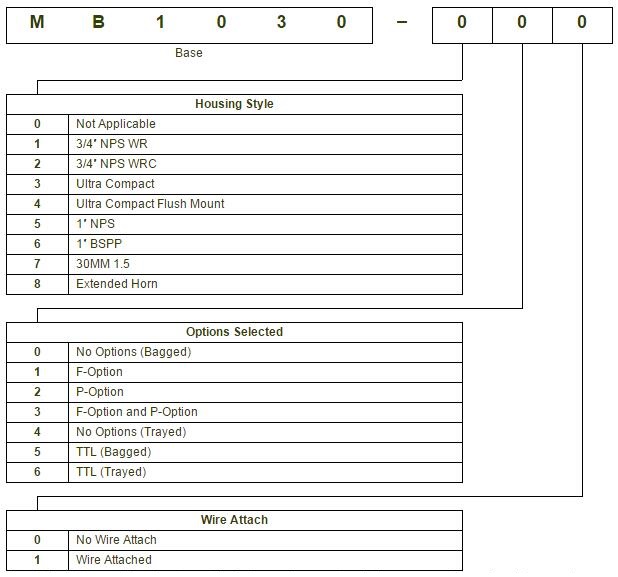

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

The following table displays all of the active and valid part numbers for this product.
