Rugged Water pH Sensor - WQ201

? Output?: 4-20 mA?
? Range?: 0 to 14 pH?
? Accuracy?: 2% full scale?
? Maximum Pressure?: 40 psi?
? Operating Voltage?: 10 to 30 VDC?
? Current Draw: 5.5 mA plus sensor output?
? Operating Temperature?: 23° to +131°F (-5° to +55°C)?
? Warm-up Time: 3 seconds minimum?

Model Number: WQ201
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

WQ201 pH Sensor Description

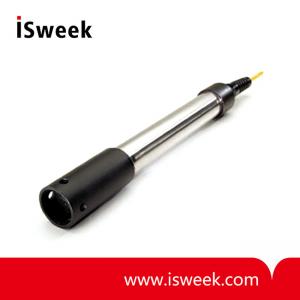

WQ201 pH Sensor is a rugged and reliable water pH measuring device. The pH transmitter is mounted on 25 ft of marine grade cable, with lengths up to 500 ft available upon request. The sensor's output is 4-20 mA with a three-wire configuration. The WQ201's electronics are completely encapsulated in marine grade epoxy within a stainless steel housing. The unit also uses a removable shield and replaceable pH sensor element for easy maintenance.

WQ201 pH Sensor Features
? Submersible pH measurements
? Fully encapsulated electronics
? 4-20 mA output
? Marine grade cable with strain relief
? Stainless steel housing
? Replaceable pH element

WQ201 pH Sensor Applications
Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications.

WQ201 pH Sensor Specifications

Output	4-20 mA
Range	0 to 14 pH
Accuracy	2% full scale
Maximum Pressure	40 psi
Operating Voltage	10 to 30 VDC
Current Draw	5.5 mA plus sensor output
Operating Temperature	23° to +131°F (-5° to +55°C)
Warm-up Time	3 seconds minimum
Size of Probe	Open Water: 1? in dia. x 10 in long (3.2cm dia. x 25.4cm long) Online: 2 in dia. x 12 in long (5cm dia. x 30.5cm long)
Weight	1 lb (454 g)

WQ201 pH Sensor Ordering & Options

Order No.	Description
WQ201	pH Sensor for Open Water (includes 25 ft cable)
WQ201-O	Online pH Sensor (with 1 inch NPT thread and 25 ft cable)
00-449	pH Sensor Replacement
WQEXC	Extra Sensor Cable, per foot (up to 500 ft)
