Temperature Sensor - 480 1000 063/01

Product Specification

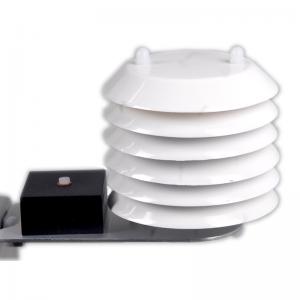

480 1000 063/01?Temperature Sensor Description
Although not supplied with an Instromet weather station as standard, this separate temperature sensor can be used with any of the Atmos and Climatica ranges of weather station.

The sensor comes complete with 25m of 2 core cable.

Wall or mast mount away from heater or air conditioner outlets.
Avoid mounting over flat roofs which may radiate heat during sunny periods.

480 1000 063/01?Temperature Sensor?Installation Instructions
This unit can be wall or mast mounted. It should be fitted where there is free movement of air and away from heater /ventilation outlets, chimneys, warm walls and flat roofs etc. The length of the cable affects the calibration and therefore should not, if possible, be shortened or lengthened.

The cable is connected in the junction box with the white cable connected to the AIR TEMP terminals.

480 1000 063/01?Temperature Sensor?Operating Instructions
Outside Temperature
The LCD temperature display shows the outside temperature at the roof top sensor. Celsius or Fahrenheit display may be selected by pressing the lowest of the buttons on the left side of the cabinet.
