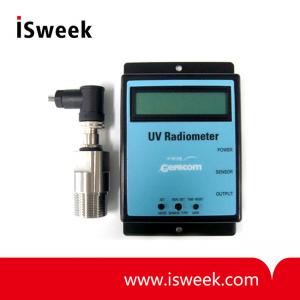

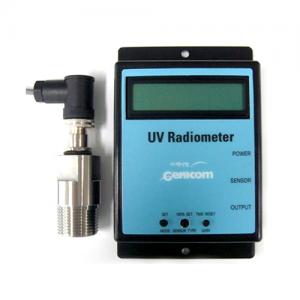

UV Radiometer 1.0 - GUVx-T1xGS-3LW10
- Fixing method: 2 Fixing Hole
- Power: DC 9V (AC220V 50/60 Hz Adapter)
- Thread/Length for Mounting: PT3/4 "/16mm
- Operating Temperature: -15~65°C
- Power Consumption: Typical 0.13A
- Detection Range:
GUVV-T11GS-3LW10: 230~395nm
GUVB-T12GS-3LW10: 220~320nm
GUVC-T11GS-3LW10: 220~280nm
- Model Number: GUVx-T1xGS-3LW10
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVx-T1xGS-3LW10 UV Radiometer 1.0 Applications
UV Purification
Water treatment
GUVx-T1xGS-3LW10 UV Radiometer 1.0 Constitution
Display, Adapter, Sensor Probe, Connection Cable, Output Line

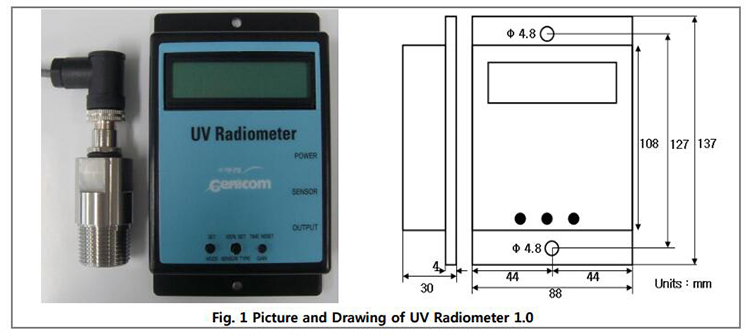

GUVx-T1xGS-3LW10 UV Radiometer 1.0 Case dimensions
|
Thread/Length for
Mounting |
Diameter
(mm) |
Window (mm) |
Wrench
Size(mm) |
Length
(mm) |
Weight (g) |
Connection
Cable(m) |
Body (stainless steel) |
| PT3/4 "/16 mm | 30 | 7 | 26 | 62 | 200 | 5 | 316-L ( 1.4404 ) |
Information of UV Radiometer GUVx-T1xGS-3LW10
Parameter
Value
Unit
Remark
Min.
Typ.
Max.
Operating Temperature
-15
65
°C
Power Consumption
0.13
A
Detection
Range
GUVV-T11GS-3LW10
230
395
nm
10% of Max
GUVB-T12GS-3LW10
220
320
nm
10% of Max
GUVC-T11GS-3LW10
220
280
nm
10% of Max
Connection
1. Main Power
- DC 9V 300 mA (AC220V 50/60 Hz Adapter)
2. Detection Power Range
- Standard : Max. 100 mW/cm2
- Option : Max. 10 mW/cm2 , Max. 1000 mW/cm2
3. Output
It depends on UV power of UV source.
1) Voltage : 0 ~ 5 V, 0.1A Max.
2) Current : 4 ~ 20 mA, 5V
