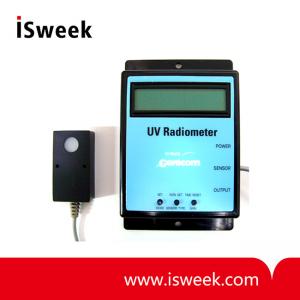

UV Radiometer 1.0 - GUVx-T1xGS-LA2
- Fixing method: 2 Fixing Hole
- DC 9V 300mA (AC220V 50/60Hz Adapter)
- Operating Temperature: -15~65°C
- Power Consumption: Typical 0.13A
- Detection Range:
GUVV-T10GS-LA2: 230~395nm
GUVB-T11GS-LA2: 220~320nm
GUVC-T10GS-LA2: 220~280nm
- Model Number: GUVx-T1xGS-LA2
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVx-T1xGS-LA2 UV Radiometer 1.0 Description
It inform the UV power of UV source through the LCD using UV Sensor. You can choose the sensor part by your application.GUVx-T1xGS-LA2 UV Radiometer 1.0 Applications
UV Curing
GUVx-T1xGS-LA2 UV Radiometer 1.0 Constitution
Display, Adapter, Probe (Sensor+Connection line), Output Line
GUVx-T1xGS-LA2 UV Radiometer 1.0 Case dimensions
|
Type |
Width (mm) |
Length (mm) |
Height (mm) |
Window (mm) |
Weight (g) |
Connection Line (m) |
Body |
Remark |
| Display | 88 | 137 | 30 | - | 155 | - | - |
|
|
Probe |
30 |
55 | 16 | 12 | 57 | 5 |
Al-60 |
|
Information of UV Radiometer GUVx-T1xGS-LA2
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
||||
|
Operating Temperature |
-15 |
|
65 | °C |
|
|
|
Power Consumption |
|
0.13 |
|
A |
|
|
|
Detection Range |
GUVV-T10GS-LA2 |
230 |
|
395 |
nm |
10% of Max |
|
GUVB-T11GS-LA2 |
220 |
|
320 |
nm |
10% of Max |
|
|
GUVC-T10GS-LA2 |
220 |
|
280 |
nm |
10% of Max |
|
Connection
1. Main Power
- DC 9V 300mA (AC 220V 50/60Hz Adapter)
2. Detection Power Range
- Standard : Max. 100mW/cm2
- Option : Max. 10mW/cm2 , Max. 1000mW/cm2
3. Output
It depends on UV power of UV source.
1) Voltage : 0 ~ 5 V, 0.1A Max.
2) Current : 4 ~ 20 mA, 5V
