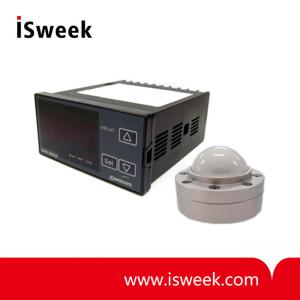

UV Radiometer 2.0 - GUVx-S1xSS2-3LWH3
- Fixing method: Panel Insertion
- Display Size: 95 x 48 x 118 ?
- Power Consumption: max 5VA
- GUVA-S12SS2-3LWH3:
Wavelength: 220~370nm
Power: 0~50 ?/?
- GUVB-S11SS2-3LWH3:
Wavelength: 220~320nm
Power: 0~20 UVI
- Model Number: GUVx-S1xSS2-3LWH3
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Description
Check the UV Power of Sunlight with Head Sensor, Output of Display : Relay, 4-20mA (Option), RS485 (Option)
Check the UV Power of Sunlight with Head Sensor, Output of Display : Relay, 4-20mA (Option), RS485 (Option)
GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Applications
Outdoor UV Index

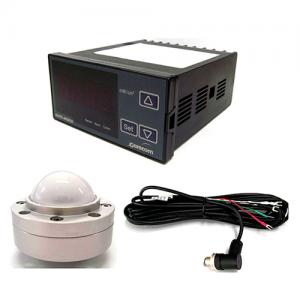

GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Constitution
Display, Head Sensor, Cable

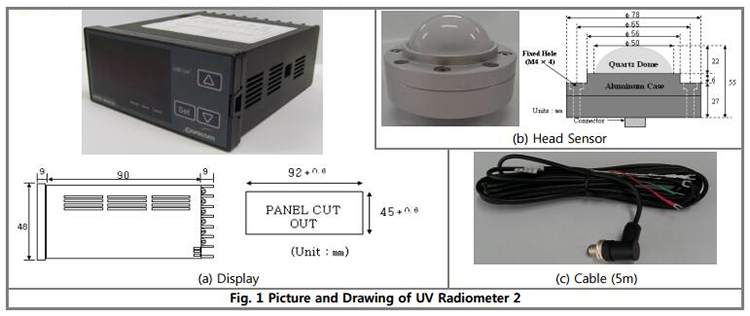

GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Case Dimensions
|
Display |
UVA Head Sensor |
Cable Length (m) |
||
|
Size |
Panel Cut Out |
Size |
Window |
|
|
95 x 48 x 118 mm3 |
92 x 45 mm2 (-0,+0.6mm) |
Φ 78 x 55mm |
Φ 50 x 22mm |
5 |
GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Head Sensor |
|
0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-S1xSS2-3LWH3 UV Radiometer 2.0 Electro-Optical Characteristics (at 25 ℃)
|
Model No. |
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max |
||||
|
GUVA-S12SS2-3LWH3 |
Wavelength |
220 |
|
370 | nm |
|
|
Power |
0 |
|
50 | mW/cm2 |
|
|
|
GUVB-S11SS2-3LWH3 |
Wavelength |
220 |
|
320 | nm |
|
|
Power |
0 |
|
20 | UVI |
|
|
