10kg to 2t Load Cell - F3
10kg to 2t Load Cell F3
Nominal Load from 10 kg to 2 t
Class (OIML R60): C2, C3
Combined Error: 0.018%
Material: Stainless Steel
Output: 2mV/V
Protection: IP67
- Model Number: F3
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
F3
10kg to 2t Load Cell

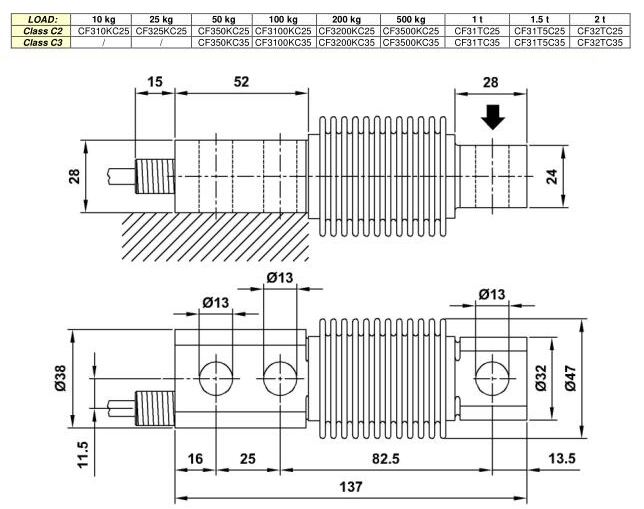

Dimensions [mm]
Technical Data
|
ACCURACY CLASS: OIML R60 |
C2 |
C3 |
|
DIVISIONS |
2000 | 3000 |
|
NOMINAL LOAD (Emax) |
10-25-50-100-200-500kg 1-1.5-2 t |
50-100-200-500 kg 1-1.5-2 t |
|
MINIMUM VERIFICATION DIVISION (Vmin) |
Emax / 10000 |
|
|
COMBINED ERROR NON REPEATABILITY TOLERANCE ON ZERO over 30 min. CREEP to nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.027% ≤ ±0.015% ≤ ±0.021%
≤ ±0.012% |
≤ ±0.027%
≤ ±0.015%
≤ ±0.021%
≤ ±0.028%
≤ ±0.012%
|
|
TEMPERATURE EFFECT 10 °C a) on zero b) on sensitivity |
≤ ±0.023% |
≤ ±0.013% |
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
|
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMENDED SUPPLY VOLTAGE NOMINAL RANGE VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20 ? 350 ± 2 ? > 5 G ? ≤ ±1% 10 V 1-15 V 18 V |
|
|
MECHANICAL LIMIT values related to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) maximum side load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
|
|
REFERENCE TEMPERATURE NOMINAL TEMPERATURE RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
|
|
WEIGHT |
~ 1.0 kg |
|
|
PROTECTION CLASS (EN 60529) CELL MATERIAL CABLE LENGTH |
IP67 Acciaio Inox / Stainless Steel 5m |
|
|
FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M12 12.970 Nm |
|
