20kg to 500kg Bending Beam Load Cells - FCOL
? 17-4 PH stainless steel
? Nominal load (E max): 20 - 50 - 100 - 200 - 350 - 500 kg?
? Combined error ≤ ±0.02% (0.017% C4)
? Protection class IP68
- Model Number: FCOL
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
FCOL
Bending Beam Load Cells

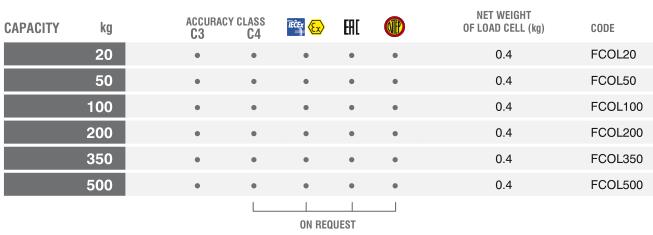

Capacity from 20 kg to 500 kg
? 17-4 PH stainless steel
? Combined error ≤ ±0.02% (0.017% C4)
? Protection class IP68
FCOL Bending Beam Load Cells?TECHNICAL FEATURES
|
Material |
17-4 PH stainless steel |
|
|
OIML R60 Accuracy class ? Verification intervals |
C3 ? 3000 |
C3 ? 4000 |
|
Nominal load (E max) |
20 - 50 - 100 - 200 - 350 - 500 kg |
|
|
Minimum verification interval (V min) |
? ? E max / 10000 ? ? |
? ? E max / 15000 ? ? |
|
Combined error |
≤±0.02% |
≤±0.017% |
|
Protection class |
IP68 |
|
|
Rated output |
2 mV/V ±1% * |
Input resistance |
460 Ω ±50 |
|
Temperature effect on zero |
0.002% °C |
Output resistance |
350 Ω ±3.5 |
|
Temperature effect on span |
0.0014% °C |
Zero balance |
≤±1% |
|
Compensated temperature range |
-10 °C / +40 °C |
Insulation resistance |
≥5000 MΩ |
|
Operating temperature range |
-35 °C / +65 °C |
Safe overload (% of full scale) |
150% |
|
Creep at nominal load in 30 minutes |
0.02% |
Ultimate overload (% of full scale) |
300% |
|
Max supply voltage without damage |
18 V |
Deflection at nominal load |
0.4 mm |
FCOL?Bending Beam Load Cells?ELECTRICAL CONNECTIONS
|
Cable lenght |
3 m |
|
Cable diameter |
5 mm |
|
Cores |
4/6 x 0.22 mm2 |
