500kg to 10t Load Cell - FT2
500kg to 10t Load Cell FT2
Nominal Load from 500kg to 10t
Class (OIML R60) C2 and C3
Combined Error: 0.019%
Output: 2mV/V
- Model Number: FT2
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
FT2
500kg to 10t Load Cell

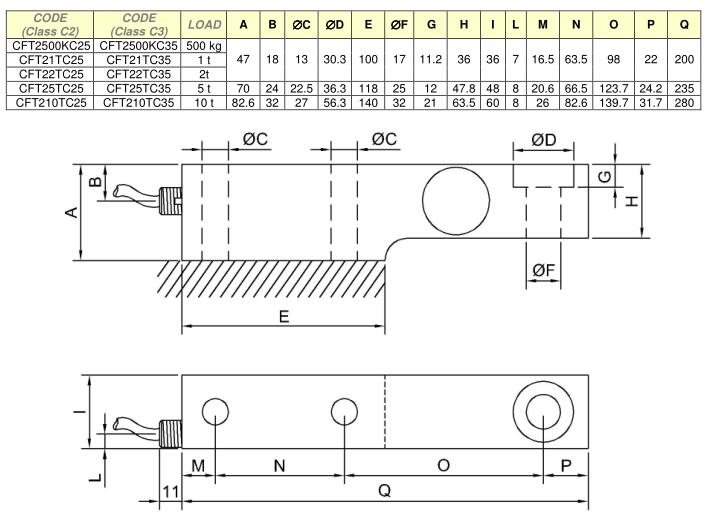

Dimensions
Technical Data
|
ACCURACY CLASS: OIML R60 |
C2 |
C3 |
|
|
LEGAL DIVISIONS |
2000 |
3000 | |
|
NOMINAL LOAD (Emax) |
500 kg 1-2-5-10 t |
||
|
MINIMUM VERIFICATION INTERVAL (Vmin) |
E max / 10000 |
||
|
COMBINED ERROR NON REPEATABILITY ZERO RETURN over 30 min. CREEP to nominal load: a) over 30 min. b) over 20 and 30 min. |
≤ ±0.022%
≤ ±0.015%
≤ ±0.026%
≤ ±0.028%
≤ ±0.010%
|
≤ ±0.019%
≤ ±0.010%
≤ ±0.018%
≤ ±0.012%
≤ ±0.009%
|
|
|
TEMPERATURE EFFECT (10 °C) a) on zero b) on sensitivity |
≤ ±0.025% |
≤ ±0.016% |
|
|
NOMINAL SENSITIVITY SENSIVITY TOLERANCE |
2mV/V ≤ ±0.1% |
||
|
INPUT RESISTANCE OUTPUT RESISTANCE INSULATION RESISTANCE ZERO BALANCE RECOMMENDED SUPPLY VOLTAGE NOMINAL SUPPLY VOLTAGE MAXIMUM SUPPLY VOLTAGE |
420 ± 20? 350 ± 2? >5 G? ≤ ±1% 10 V 1-15 V 18 V |
||
|
MECHANICAL LIMIT values referred to nominal load: a) minimum load b) service load c) max permissible load d) breaking load e) max transverse load f) max permissible dynamic load DISPLACEMENT AT NOMINAL LOAD |
0% |
||
|
REFERENCE TEMPERATURE TEMPERATURE NOMINAL RANGE SERVICE TEMPERATURE STORAGE TEMPERATURE |
+23°C -10/+40 °C -20/+70 °C -20/+80 °C |
||
|
WEIGHT |
~ 2.3 kg |
~ 4.3 kg |
~ 8.0 kg |
|
PROTECTION CLASS (EN 60529) EXECUTION MATERIAL CABLE LENGTH |
IP68 (100h at 1m water column) Acciaio Inox / Stainless Steel 5m |
||
|
FIXING SCREWS a) diameter b) resistance class c) tightening torque |
M12
12.9
80 Nm
|
M20 12.9160 Nm |
M24 |
