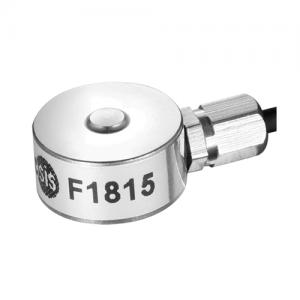

5kg to 200kg Compression Load Cell - F1815

? capacities range from 5Kg to 200kg
? Rated output: 1.5±10% mV / V
? Non-linearity: 0.5 % F.S.
? Hysteresis: 0.5 % F.S.
? Repeatability: 0.1 % F.S.
? Temp.effect on output: 0.36 % F.S. / 10oC
? Operation temp range: -20 ~ 80oC
? Protection class: IP64

Model Number: F1815
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F1815
Compression Load Cell

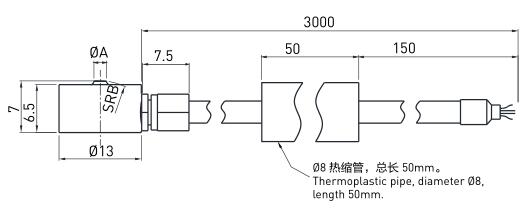

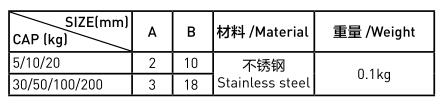

F1815 Compression Load Cell Size and Capacity

F1815 Compression Load Cell Features & Applications
? Miniature load cell with metal foil strain gauge technology.
? Made of stainless steel.
? Designed for low profile compression service.
? There is an adjustable resistance outside the load cell.
? lts capacities range from 5Kg to 200kg
? It comes complete with 3m of load cell cable.
? The diameter is 13mm.
? Suitable for force measurement in limited spaces.
? Various applications such as consumer electronics assembly, automation industry.

F1815 Compression Load Cell Technical Parameters

Specifications	Technique
Rated output	1.5±10% mV / V
Non-linearity	0.5 % F.S.
Hysteresis	0.5 % F.S.
Repeatability	0.1 % F.S.
Temp.effect on output	0.36 % F.S. / 10oC
Temp.effect on zero	0.18 % F.S. / 10oC
Input impedance	350±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5 V
Maximum excitation	7 V
Compensated temp range	-10 ~ 60oC
Operation temp range	-20 ~ 80oC
Safe overload	120% F.S.
Ultimate overload	150 % F.S.
Cable size	?2×3000 mm
Protection class	IP64
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
