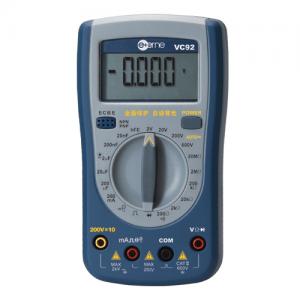

Auto-identification AC/DC Digital Multimeter - VC92
? 3 1/2 digit display
? ChFE measurement
? 2000 count resolution
? Resistance measurement
? Current and Voltage measurements
? Capacitance measurements
? Automatic backlight
? Auto-identification AC/DC
- Model Number: VC92
- Quantity:
- - +
Product Specification
VC92 Digital Multimeter General Feature
? 3 1/2 digit display
? ChFE measurement
? 2000 count resolution
? Resistance measurement
? Current and Voltage measurements
? Capacitance measurements
? Automatic backlight
? Auto-identification AC/DC
? 2kHz standard square wave Output
? Measures DC high-voltage, up to 2kv
VC92 Digital Multimeter Accessories
ET-01B test lead sets, ET-B08 oxford bag, 10A Current Adaptor
VC92 Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
2V~600V |
1mV |
±(0.8%+3d) |
|
AC Voltage |
2V~600V |
1mV |
±(1.2%+3d) |
|
AC/DC Current |
200mA |
100μA |
±(2%+5d) |
|
AC/DC Voltage |
2kV(200VX10) |
1V |
±(3%+5d) |
|
Resistance |
200Ω~20MΩ |
100mΩ |
±(0.8%+3d) |
|
Capacitance |
20nF~200μF |
10pF |
±(3%+3d) |
|
Square wave output |
2kHz |
Duty Cycle50% |
3Vp_p |
