Compression Load Cell - 276EH
? Material: Alloy steel
? Rated Capacities: 5t, 10t, 25t, 50t, 100t
? Full Scale Output: 2.5mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? Mounting hardware included
- Model Number: 276EH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

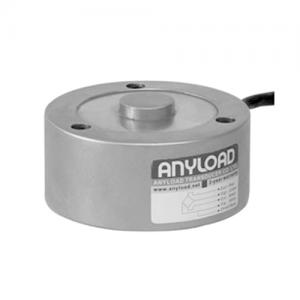

276EH Compression Load Cell
276EH Compression Load Cell Features
? Material: Alloy steel
? Rated Capacities: 5t, 10t, 25t, 50t, 100t
? Full Scale Output: 2.5mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP67
? Mounting hardware included
276EH Compression Load Cell Specification
|
Full Scale Output |
2.5 mV/V ±10% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
Cap.≤50t: <±0.32%; Cap.≥100t: <±1% |
|
Repeatability |
Cap.≤50t: <±0.050%; Cap.≥100t: <±0.2% |
|
Hysteresis Error |
Cap.≤50t: <±0.32%; Cap.≥100t: <±2% |
|
Creep in 30 min. |
Cap.≤50t: <±0.10%; Cap.≥100t: <±0.1% |
|
Input Resistance |
400Ω±20 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Environmentally Sealed / IP67 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
276EH Compression Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
5t |
276EH-5t |
0.6 |
|
10t |
276EH-10t |
0.9 |
|
25t |
276EH-25t |
1.8 |
|
50t |
276EH-50t |
4.2 |
|
100t |
276EH-100t-LA |
8.7 |
