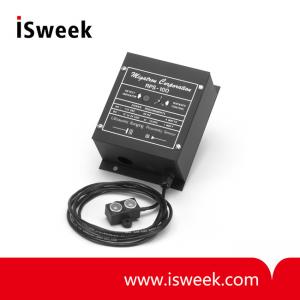

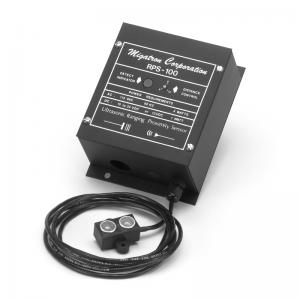

Controller With Remote Sensing Head - RPS-100

? Ranges: 2-14", 5-72", 10-240"
? Input Current: 30 Milliamps
? Ambient Temperature: 0”C to 60”C or 32”F to 140”F
? Transducer Frequency:? 38.5kHz?
? Weight of Transducer:? 2.2 ounces?
? Weight of Controller:? 34.2 ounces?
? Broad beam sensor
? On/off output with analog capability

Model Number: RPS-100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-100 Controller With Remote Sensing Head Features
? Various Sensing Ranges
? Broad Sensing Beam
? Low Frequency - 38.5kHz
? LED Indicator
? Small Transducer Head
? Remote Transducer
? RPS-500 Compatible
? 3 - Way Power Operation
? Isolated Form C Relay Output
? Small Electronic Controller

RPS-100 Controller With Remote Sensing Head Description
The RPS-100 is the first of the RPS series and has a proven track record of reliability. Since its introduction in 1979, the RPS-100 has proven itself in versatility and ease of operation. The remote transducer allows for mounting of the sensor head in cramped spaces while the controller is out of the way. The ranging and proximity modes provide the versatility of simple detection, or actual distance measuring.

The isolated form C relay furnishes N.O. and N.C. outputs, and with the addition of the RPS-500 card various analog outputs are supplied. The RPS-100 sensor, which operates at a frequency of 38.5kHz, has a broad sensing beam which allows for detection of an object at greater angles of tilt. Sensing ranges available for the RPS-100 include 2″ to 14″, 5″ to 72″, and 10″ to 240″. Mounting flanges, LED indicator, ranging potentiometer, and 6-ft. transducer cable are included. Optional cable lengths are available.

RPS-100 Controller With Remote Sensing Head Specifications

Operational Range:	Adjustable 2" to 14" Adjustable 5" to 72" Adjustable 10" to 240"
Power Input: *Only 120VAC or 24VDC with 500 Analog card.	120VAC 15 - 24VDC 12VDC Regulated 12 - 17VAC
Input Current:	30 Milliamps
Input Current with 500 card:	50 Milliamps
Ambient Temperature:	0”C to 60”C or 32”F to 140”F
Controller:	Metal Enclosed
Transducer:	Aluminum
Transducer Housing:	Plastic
Output: N.O., N.C.	Isolated Form C Relay .5 Amp Maximum at 120VAC 12VDC Logic Signal
Output with 500 card:	0 - 10VDC, 4 - 20 mA Analog Outputs with Zero, Span, Sample, and Hold controls.
Transducer Frequency:	38.5kHz
Response Time: 2" to 14" 5" to 72" 10" to 240"	30mS - On; 30mS - Off 100mS - On; 100mS - Off 250mS - On; 250mS - Off
Weight of Transducer:	2.2 ounces
Weight of Controller:	34.2 ounces

PART NUMBER	RANGE	OUTPUT
RPS-100-14 RPS-100-72 RPS-100-240	2" - 14" 5" - 72" 10" - 240"	Isolated form C Relay Isolated form C Relay Isolated form C Relay
RPS-100-14-500 RPS-100-72-500 RPS-100-240-500	2" - 14" 5" - 72" 10" - 240"	0 - 10VDC and 4 - 20mA Analog 0 - 10VDC and 4 - 20mA Analog 0 - 10VDC and 4 - 20mA Analog
