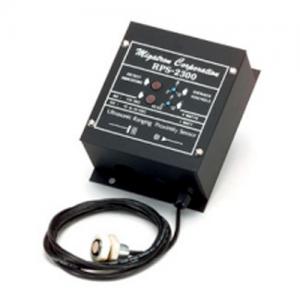

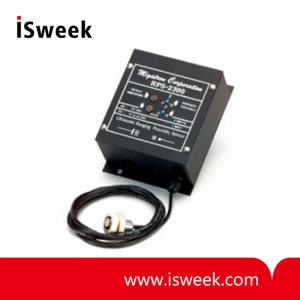

Controller With Remote Sensing Head - RPS-2300

? Ranges: 4-14", 5-36", 8-72"
? Power Input: 120 VAC, 15 - 24VDC
? Input Current: 40 Milliamps
? Ambient Temperature: 0oC to 60oC or 32oF to 140oF
? Transducer Frequency: 222 kHz for 14" and 36", 150 kHz 72"
? Weight of Controller: 34.2 ounces?
? Narrow beam sensor
? On/off output with analog capability

Model Number: RPS-2300
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-2300 Controller With Remote Sensing Head Features
? Various Sensing Ranges
? Narrow Sensing Beam
? High Frequency
? 2-Way Power Operation
? Sealed Remote Transducer
? Adjustable Delay Controls
? 2 Independant Range Adjustments
? LED Indicators
? Isolated Form C Relay Outputs
? Small Electronic Controller

RPS-2300 Controller With Remote Sensing Head Description
The RPS-2300 is a single transducer device with 2 independant range control adjustments, LED indicators, and form C relay outputs. These make the sensor well suited for high and low level control, or other applications where two set points are needed. The transducer heads are made of Delrin with epoxy face for the 14″ and 36″ sensors and Valox with a silicon face for the 72″. A sealed silicon rubber sensing face is used making this sensor best suited for environments where dirt is a problem. This sensor also has a unique master and slave feature which enables many of the same units to be used within close proximity of one another without cross-talk interference. For example, if three sensors are needed in a close area, one sensor would be left as a master and the other two would be slaves. This is done by means of the X IN, X OUT, and GND connection on the board. One sensor (master) would send a signal by means of the X OUT and GND terminals. These would be connected to the X IN and GND terminals of the other two sensors (slaves).

RPS-2300 Controller With Remote Sensing Head

Operational Range:	Adjustable 4" to 14" Adjustable 5" to 36" Adjustable 8" to 72"
Power Input:	120 VAC 15 - 24VDC
Input Current:	40 Milliamps
Ambient Temperature:	0oC to 60oC or 32oF to 140oF
Enclosure: Controller - Transducer -	Metal Enclosure Galvanized Steel 14" & 36", Plastic 72" Silicone Rubber Sensing Face, Epoxy Filled
Output: (2) N.O., N.C.	Isolated form C relay .5 Amp Max. at 120 VAC
Transducer Frequency:	222 kHz for 14" and 36", 150 kHz 72"
Adjustable Response Time: 4" to 14" 5" to 36" 8" to 72"	ON 30mS - 2S; OFF 30mS - 2S ON 100mS - 2S, OFF 100mS - 2S ON 100mS - 2S, OFF 100mS - 2S
Weight of Controller:	34.2 ounces
