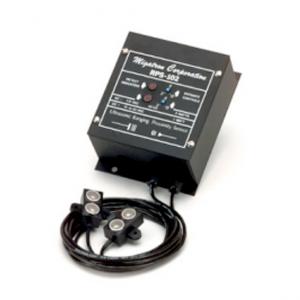

Controller With Remote Sensing Heads - RPS-102

? Ranges: 2-14", 5-72", 10-240"
? Power Input: 120VAC, 15 - 24VDC
? Input Current: 40 Milliamps
? Ambient Temperature: 0oC to 60oC or 32oF to 140oF
? Transducer Frequency: 38.5kHz
? Broad beam sensor On/off output
? Dual transducers

Model Number: RPS-102
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RPS-102 Controller With Remote Sensing Heads Features
? Various Sensing Ranges
? Broad Sensing Beam
? Low Frequency - 38.5kHz
? 2-Way Power Operation
? Small Remote Transducers
? Adjustable Delay Controls
? 2 Multiplexed Transducers
? LED Indicators
? Isolated Form C Relay Outputs
? Small Electronic Controller

RPS-102 Controller With Remote Sensing Heads Description
The RPS-102 has 2 multiplexed transducers with independent range control adjustments, LED indicators, and form C relay outputs. This sensor also has a unique master and slave feature which enables many of the same units to be used within close proximity of one another without cross-talk interference. For example, if three sensors are needed in a close area, one sensor would be left as a master and the other two would be slaves. This is done by means of the X IN, X OUT, and GND connection on the board.

One sensor (master) would send a signal by means of the X OUT and GND terminals. These would be connected to the X IN and GND terminals of the other two sensors (slaves). With the sensors connected in this way, all units would be transmitting and receiving at the same time. This then would prevent cross-talk and enable all three sensors, or all six transducers, to be used at the same time in close proximity of one another. There are also separate turn ON and turn OFF DELAY potentiometers provided for each transducer. All four DELAY controls are located alongside the black module inside the enclosure box. The remote transducers allow for mounting of the sensor heads in cramped spaces while the controller is out of the way. The (2) independent isolated form C relays furnish N.O. and N.C. outputs. This sensor, which operates at a frequency of 38.5kHz, has a broad sensing beam which allows for detection of an object at greater angles of tilt. Sensing ranges available for the RPS-102 include 2″ to 14″, 5″ to 72″, and 10″ to 240″. Mounting flanges, LED indicators, ranging potentiometers, and 6-ft. transducer cables are included. Optional cable lengths are available.

RPS-102 Controller With Remote Sensing Heads Specifications

Operational Range:	Adjustable 2" to 14" Adjustable 5" to 72" Adjustable 10" to 240"
Power Input:	120VAC 15 - 24VDC
Input Current:	40 Milliamps
Ambient Temperature:	0oC to 60oC or 32oF to 140oF
Controller:	Metal Enclosed
Transducer:	Aluminum
Transducer Housing:	Plastic
Output: N.O., N.C. (one for each transducer)	Isolated Form C Relay .5 Amp Maximum at 120VAC
Transducer Frequency:	38.5kHz
Adjustable Response Time: 2" to 14" 5" to 72" 10" to 240"	ON 30mS - 2S; OFF 30mS - 2S ON 100mS - 2S; OFF 100mS - 2S ON 250mS - 2S; OFF 250mS - 2S
Weight of Controller:	34.2 ounces
Weight of Each Transducer:	2.2 ounces

PART NUMBER	RANGE	OUTPUT
RPS-102-14 RPS-102-72 RPS-102-240	2" - 14" 5" - 72" 10" - 240"	1 Isolated form C Relay for each Transducer 1 Isolated form C Relay for each Transducer 1 Isolated form C Relay for each Transducer
