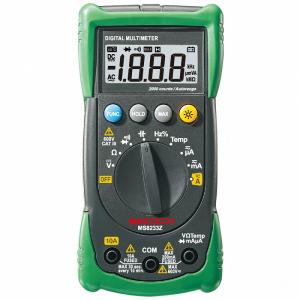

Digital Multimeter - MS8233Z

Product Specification

MS8233Z Digital Multimeter Introduction
This manual is used to MS8233Z and Digital Multi Meter only.

This meter is a handheld and battery operated Digital Multi Meter (DMM) with multi function. This Meter is designed to meet IEC61010-1 & CAT II 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resisitance against the shock of a drop.

Protection provided by the instrument will be impaired if used in a manner not specified by the manufacture.

This operating instruction covers information on safety and caution. Please read relevant information carefully and observe all the warnings and note strictly.

The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.

MS8233Z Digital Multimeter Features
? Display 4000 counts
? Auto & Manual Ranging
? Diode Open Voltage 1.5V
? Continuity Buzzer <50±20Ω
? Data Hold
? Auto Power Off
? Maximum Measurement
? Display Backlight
? Low Battery Display

MS8233Z Digital Multimeter General Specifications
? Power Supply: 1 x 9V 6F22 Battery
? Product Size: 140mm x 67mm x 30mm / 5.5" x 2.6" x 1.2"
? Product Weight: 112g/0.25lb
? Certificate: RoHS
? Safety Rating: CATII 600V
