Digital Multimeter - MS8239A

? Display: 2000 counts
? Diode: 2.5V
? Continuity Buzzer: <60?
? Data hold
? Low Battery Display
? Power Supply: 2*1.5V AAA Batteries
? Product Weight: 202g/0.441lb
? Product Size: 150mm*74mm*41mm

Model Number: MS8239A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

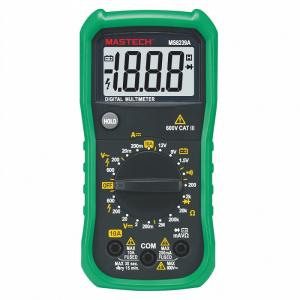

MS8239A Digital Multimeter

The MS8239A is a small hand-held, salf and reliable 3.5" digital multimeter with stable performance and novel structure. It can be used to measure DC voltage, DC current, resistance, diode forward voltage drop, circuit continuity and to rest batteries. It is an ideal mainrenance tool easily carried by a large number of users.

MS8239A Digital Multimeter Overview
? Power Supply: 2*1.5V AAA Batteries
? Product Size: 150mm*74mm*41mm / 5.9"*2.9"*1.6"
? Product Weight: 202g/0.441lb
? Order Ref. Number: MS8239AC15L
? Safety Rating: CE(EMC+LVD) CAT III 600V

MS8239A Digital Multimeter Features

? Display: 2000 counts
? Diode: 2.5V
? Continuity Buzzer: <60?
? Data hold
? Low Battery Display

MS8239A Digital Multimeter Specification

Specification	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+3)
DC Voltage	600V	±(0.8%+3)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	20mA/200mA	±(1.0%+5)
DC Current	10A	±(2.0%+10)
Resistance	200?/2K?/20K?/200K?/2M?	±(0.8%+5)
Battery Test	1.5V/9V/12V
