Distance Measurement Interface Boards - HG-LB40C-5V-DM

? Frequency (KHz): 40±2?
? Receiver Output Signal?:
Analog?: ±2 V max at 2.5 V Base Line?
Real Time Pulse?: 4~5 V TTL, All the objects detected?
Distance Pulse?: 4~5 V TTL Only the nearest Object?
? Input DC & Detecting Range: 0~3 m (Conventional, HG-LB40C)? (5V)?
? Low-power, high-sensitivity module.

  • Model Number: HG-LB40C-5V-DM
  • Data Sheet: Date Sheet File
Quantity:
- +

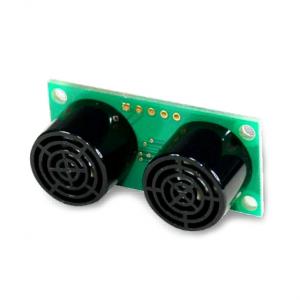

  • Distance Measurement Interface Boards

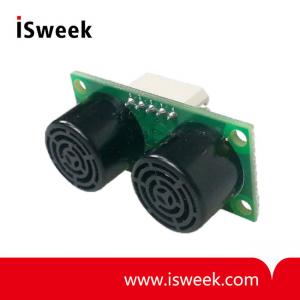

  • Distance Measurement Interface Boards
Mouse over image to zoom
Share:

Product Specification

HG-LB40C-5V-DM

Distance Measurement Interface Boards with Combi ASIC Ultrasonic Sensor & Module

HG-LB40C-5V-DM Distance Measurement Interface Boards Features
? Low-power, high-sensitivity module.
? Choose from a wide variety of input/output Mode.
? Auto sensitivity control function as a distance proportional to the distance error captain.
? The same standards as existing foreign products and mutually replaceable.

HG-LB40C-5V-DM Distance Measurement Interface Boards Specification
Frequency (KHz)
 40±2
Transmit Mode
 External Trigger
 TTL Pulse
(100~700 ?)
Repetition Rate
(10~30 time / sec)
Receiver Output Signal
 Analog
 ±2 V max
at 2.5 V Base Line
Real Time Pulse
 4~5 V TTL,
All the objects detected
Distance Pulse
 4~5 V TTL
Only the nearest Object
Input DC & Detecting Range
(at in front angle flat plate)
 Low Voltage Type (5V)
 0~3 m
(Conventional, HG-LB40C)
