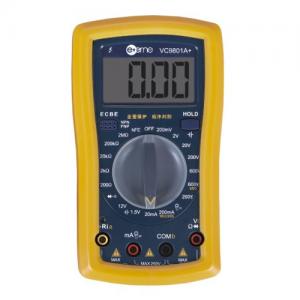

Full Protection Phase Sequence Digital Multimeter - VC9801A+
?3 1/2 digit display, 2000 count resolution
?19 measuring ranges
?1.5V/12V Battery test
?Resistance, continuity and diode measurements
?Current measurement with external clamp accessory
?Verifying positive/ negative phase sequence
?hFE measurement
- Model Number: VC9801A+
- Quantity:
- - +
Product Specification
VC9801A+ Digital Multimeter General Feature
? 3 1/2 digit display, 2000 count resolution
? 19 measuring ranges
? 1.5V/12V Battery test
? Resistance, continuity and diode measurements
? Current measurement with external clamp accessory
? Verifying positive/ negative phase sequence
? hFE measurement
? Data Hold
VC9801A+ Digital Multimeter Accessories
1 x Test lead set, 1 x Yellow holster, 1 x Phase test yellow line, 3 AAA x Batteries, 1 x user's manual
VC9801A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/ 600V |
0.1mV |
±(1.0%+3d) |
|
AC Current |
200V~600V |
0.1mV |
±(1.0%+3d) |
|
AC/DC Current |
20mA/200mA |
10μA/100μA |
±(1.0%+3d) |
|
Resistance |
200Ω/2K/20K/200K/2MΩ |
100mΩ |
±(1.0%+3d) |
|
Battery |
1.5V~12V |
Outward clamp |
Yes |
|
Diode |
Yes |
Continuity |
Yes |
|
Phase |
Yes |
hFE |
Yes |
