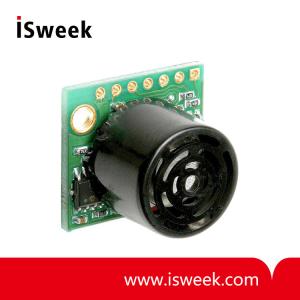

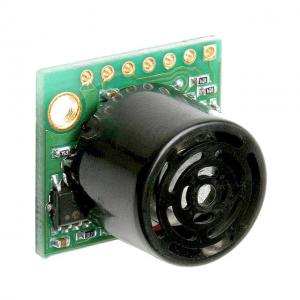

LV-ProxSonar-EZ1 High Performance Ultrasonic Rangefinder - MB1014

? Resolution of 1 inch
? Maximum reported range of 254 inches (645 cm)
? ~5 foot proximity detection zone (60 inches or 152 cm)
? Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement

Model Number: MB1014
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB1014 LV-ProxSonar-EZ1
High Performance Ultrasonic Rangefinder

MB1014 LV-ProxSonar-EZ1 Ultrasonic Rangefinder Product Description

These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV-ProxSonar-EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV-ProxSonar-EZ detection zone.

The LV-ProxSonar-EZ1 has a detection zone of ~5 feet and will allow for 8+ simultaneous sensors.

MB1014 LV-ProxSonar-EZ1 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? ~2.5 second target acquire time*
? ~1.5 second target release time*
? Automatic multi-sensor operation
? People sensor
? Maximum reported range of 254 inches (645 cm)
? ~5 foot proximity detection zone (60 inches or 152 cm)
? Run up to 8+ sensors in the same environment
? Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from sensor outputs: Serial and Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Good balance between long and short range detection zone
*Custom times available for a nominal NRE fee

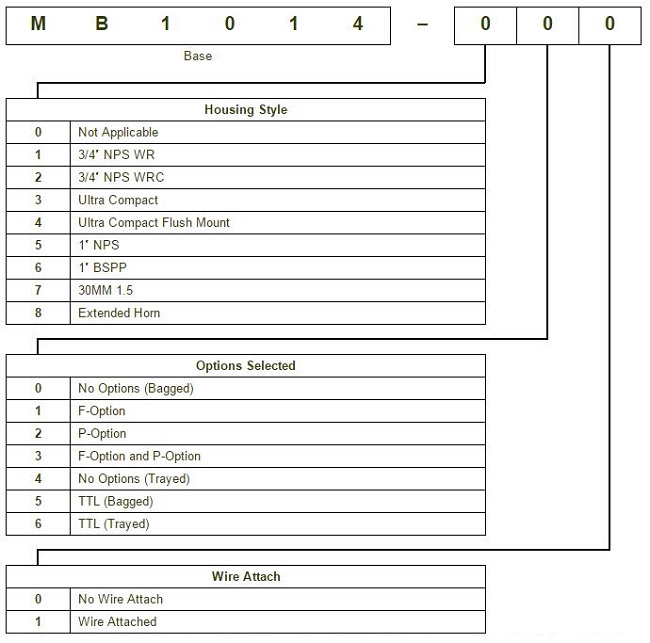

MB1014 LV-ProxSonar-EZ1 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
