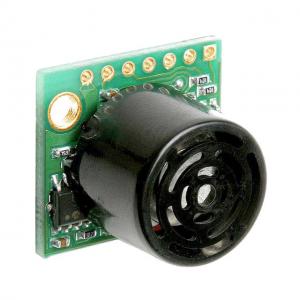

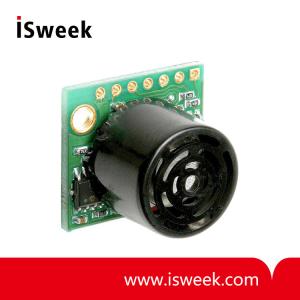

LV-ProxSonar-EZ4 High Performance Ultrasonic Rangefinder - MB1044

? Resolution of 1 inch
? Maximum reported range of 254 inches (645 cm)
? ~1 foot proximity detection zone (12 inches or 30 cm)
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial

Model Number: MB1044
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB1044 LV-ProxSonar-EZ4
High Performance Ultrasonic Rangefinder

MB1044 LV-ProxSonar-EZ4 Ultrasonic Rangefinder Product Description

These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV-ProxSonar-EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV-ProxSonar-EZ detection zone.

The LV-ProxSonar-EZ4 has a detection zone of ~1 feet and will allow for 15+ simultaneous sensors.

MB1044 LV-ProxSonar-EZ4 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 inch
? ~2.5 second target acquire time*
? ~1.5 second target release time*
? Automatic multi-sensor operation
? People sensor
? Maximum reported range of 254 inches (645 cm)
? ~1 foot proximity detection zone (12 inches or 30 cm)
? Run up to 15+ sensors in the same environment
? Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from sensor outputs: Serial and Pulse Width
? Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
? Operates from 2.5-5.5V
? Low 2.0mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Short range detection
*Custom times available for a nominal NRE fee

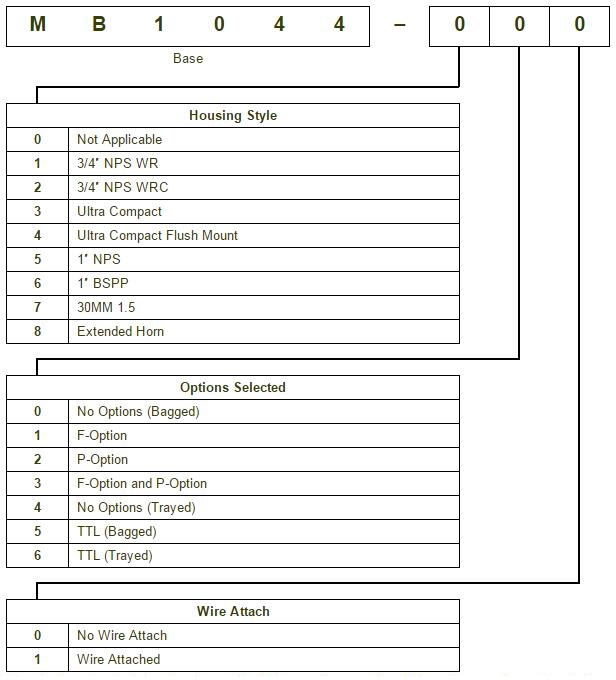

MB1044 LV-ProxSonar-EZ4 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
