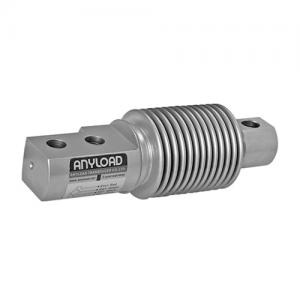

Single Ended Beam Load Cell - 563RS

? Material: Stainless steel
? Rated Capacities: 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg
? Full Scale Output: 2mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68
? NTEP, CE, RoHS and Ex certified
? Measurement Ukraine certified

Model Number: 563RS
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

563RS Single Ended Beam Load Cell

563RS Single Ended Beam Load Cell Features
? Material: Stainless steel
? Rated Capacities: 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg
? Full Scale Output: 2mV/V ± 0.25%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68
? NTEP, CE, RoHS and Ex certified
? Measurement Ukraine certified

563RS Single Ended Beam Load Cell Specification

Full Scale Output	2.0 mV/V ±0.25%
Zero Balance	Cap.≤20kg: ±0.05 mV/V Cap.>20kg: ±0.02 mV/V
Deflection at Emax	0.27 - 0.33mm
Non-linearity	<±0.017%
Repeatability	<±0.017%
Hysteresis Error	<±0.017%
Creep in 30 min.	<±0.023%
Input Resistance	400Ω±20
Output Resistance	350Ω±3
Element Material	17-4PH Stainless Steel
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Compensated Temperature Range	-10°C to 50°C / 14°F to 122°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Welded Seal / IP68
Cable Color Code	Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare

563RS Single Ended Beam Load Cell Part Number

Rated Capacity	Part No.	Shipping Weight (kg) Approx.
5kg	563RS-5kg	0.6
10kg	563RS-10kg	0.6
20kg	563RS-20kg	0.6
50kg	563RS-50kg	0.6
100kg	563RS-100kg	0.6
200kg	563RS-200kg	0.6
350kg	563RS-350kg	0.6
500kg	563RS-500kg	0.6
