Single Point Load Cell - 651KS22 / 651KSGS
? Material: Stainless steel
? 651KS22 Rated Capacities: 50kg, 100kg, 250kg, 500kg
? 651KSGS Rated Capacities: 100kg, 250kg
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? 651KS22 IP Rating: IP68/69K
? 651KSGS IP Rating: IP66
- Model Number: 651KS22 / 651KSGS
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

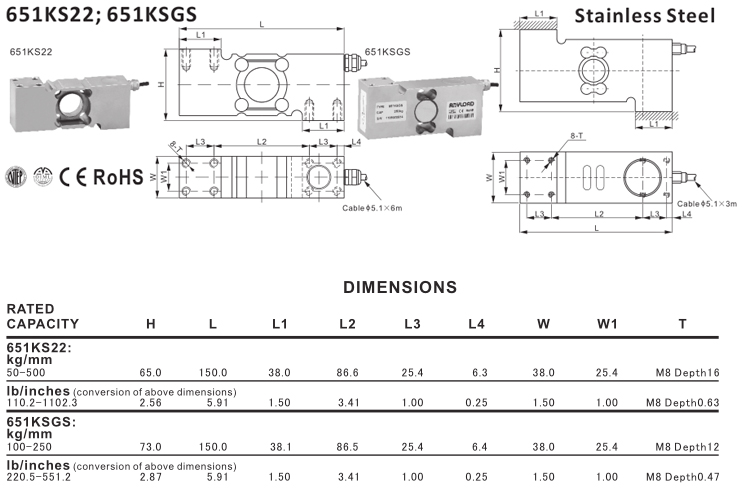

651KS22 / 651KSGS Single Point Load Cell
651KS22 / 651KSGS Single Point Load Cell Specification
|
Full Scale Output |
2.0 mV/V ±10% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
651KS22: <±0.03%; 651KSGS: <±0.05% |
|
Repeatability |
<±0.02% |
|
Hysteresis Error |
651KS22: <±0.03%; 651KSGS: <±0.05% |
|
Creep in 30 min. |
<±0.03% |
|
Input Resistance |
385Ω±15 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
17-4PH Stainless Steel |
|
Recommended Excitation |
10V (15V Maximum) |
|
Reference Max.Platform Size |
600 x 600 mm |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
651KS22: Welded Seal / IP68/IP69K 651KSGS: Environmentally Sealed / IP66 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bar |
651KS22 / 651KSGS Single Point Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
50kg |
651KS22-50kg |
2.3 |
|
100kg |
651KS22-100kg |
2.3 |
|
651KSGS-100kg |
2.5 |
|
|
250kg |
651KS22-250kg |
2.3 |
|
651KSGS-250kg |
2.5 |
|
|
500kg |
651KS22-500kg |
2.3 |
