Stainless Steel Single Point Load Cell - 651HS
? Material: Stainless steel
? Rated Capacities: 6kg, 12kg, 20kg, 30kg, 50kg, 60kg
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68/69K
- Model Number: 651HS
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

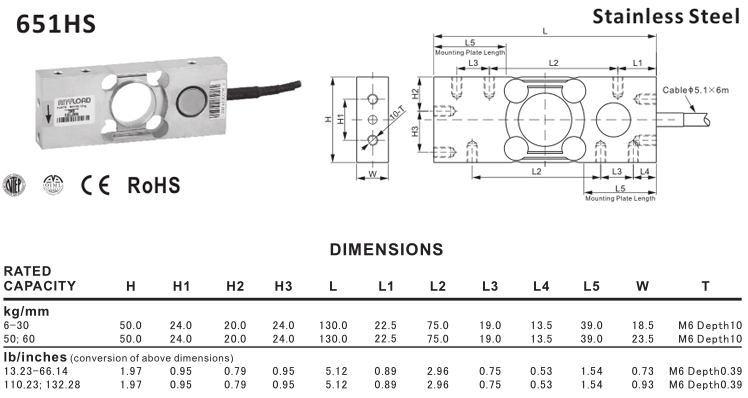

651HS Single Point Load Cell
651HS Single Point Load Cell?Features
? Material: Stainless steel
? Rated Capacities: 6kg, 12kg, 20kg, 30kg, 50kg, 60kg
? Full Scale Output: 2mV/V ± 1%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP68/69K
651HS Single Point Load Cell?Specification
|
Full Scale Output |
2.0?mV/V ±1% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
<±0.030% |
|
Repeatability |
<±0.020% |
|
Hysteresis Error |
<±0.030% |
|
Creep in 30 min. |
<±0.030% |
|
Input Resistance |
385Ω±15 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
17-4PH Stainless Steel |
|
Recommended Excitation |
10V (15V Maximum) |
|
Reference Max.Platform Size |
350 x 350 mm |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Welded Seal /?IP68/IP69K |
|
Cable Color Code |
Exc+ Red? ? ? ?Exc- Black Sig+ Green? ? Sig- White? ? ?Shield Bare |
651HS Single Point Load Cell?Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
6kg |
651HS-6kg |
0.9 |
|
12kg |
651HS-12kg |
0.9 |
|
20kg |
651HS-20kg |
0.9 |
|
30kg |
651HS-30kg |
0.9 |
|
50kg |
651HS-50kg |
1.1 |
|
60kg |
651HS-60kg |
1.1 |
