UV Radiometer 2.0 - GUVC-T11GS2-I7LW11
- Fixing method: Panel Insertion
- Thread/Length for Mounting: PT 1? "/21 mm
- Power Consumption: max 5VA
- Cable length: 5 m (standard)
- 4-20 mA Current Output
- Detection Wavelength Range: 220~280nm
- Detection Power Range: 0~100 ?/?
- Model Number: GUVC-T11GS2-I7LW11
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Description
Check the absolute power and relative power (change the setting) with UVA/B/C Sensor ProbeThere are two relay (Normal & alarm). And you can set the alarm value.
GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Applications
UV Purification (Water)
Water treatment

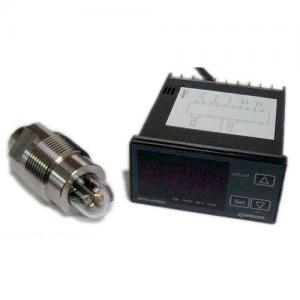

GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Constitution
Display, Sensor Probe, Connection Cable

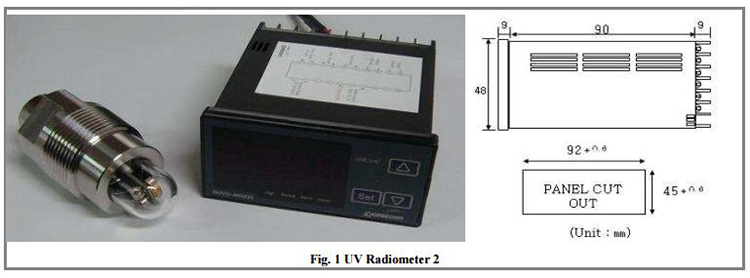

GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Case dimensions
|
Thread/Length for Mounting |
Body (mm) |
Window (mm) |
Head (mm) |
Wrench Size (mm) |
Length (mm) |
Weight (kg) |
Body (stainless steel) |
|
PT 1? "/21 mm |
Φ42 |
Φ24×24 |
Φ36×15 |
36 |
81 | 0.44 | 316-L ( 1.4404 ) |
GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
| 0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVC-T11GS2-I7LW11 UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remarka |
||
|
Min. |
Typ. |
Max. |
|||
|
Detection Wavelength Range |
220 |
|
280 | nm |
|
|
Detection Power Range |
0 |
|
100 |
mW/cm2 |
|
