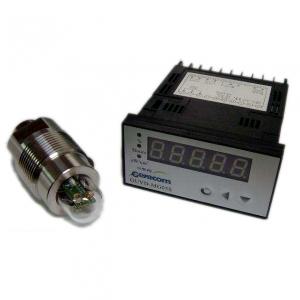

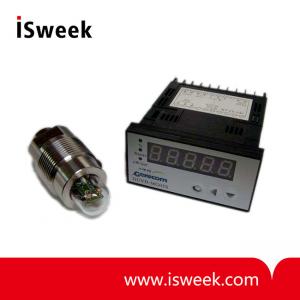

UV Radiometer 5.0 - GUVC-T11GS5-4LW11
- Electro-Optical Characteristics
- Size : 96 mm X 48 mm X 112 mm
- Power : Display : 100 ~ 240 VAC 50/60Hz
- Consumption: ≤ 5 W
- Fixing method : Panel Insertion
- Detection Power Range: 19,999 ?/? Max
- Detection Wavelength Range: 220~280nm
- Model Number: GUVC-T11GS5-4LW11
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

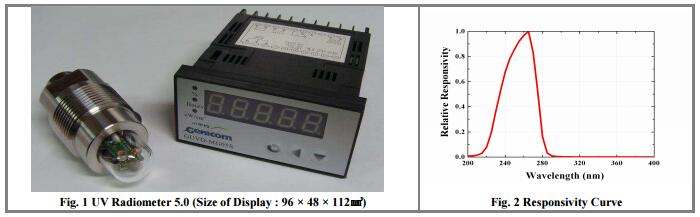

GUVC-T11GS5-4LW11 UV Radiometer 5.0 Description
UV Radiometer 5 can check the absolute power, relative power, and accumulative time.There are 3 output like DC Voltage, Current, and Relay output to UV Radiometer 5.
GUVC-T11GS5-4LW11 UV Radiometer 5.0 Constitution
Display, Sensor Probe
Sensor Probe Dimensions
|
Thread/Length for
Mounting |
Body
(mm) |
Window
(mm) |
Head (mm) |
Wrench
Size (mm) |
Length
(mm) |
Weight (kg) |
Body (stainless steel) |
|
PT 1? "/21 mm |
Φ42 |
Φ24×24 |
Φ36×15 |
36 |
81 | 0.44 | 316-L ( 1.4404 ) |
GUVC-T11GS5-4LW11 UV Radiometer 5.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
| 0 |
|
50 |
°C |
Display |
|
|
Working humidy |
35 |
|
85 |
%RH |
|
GUVC-T11GS5-4LW11 UV Radiometer 5.0 Technology parameter
|
Power Supply |
100 ~ 240 VAC 50/60 ? |
|
Consumption |
≤ 5 W |
GUVC-T11GS5-4LW11 UV Radiometer 5.0 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remarka |
||
|
Min. |
Typ. |
Max. |
|||
|
Detection Wavelength Range |
220 |
|
280 | nm |
|
|
Detection Power Range |
0 |
|
19,999 |
μW/cm2 |
|
GUVC-T11GS5-4LW11 UV Radiometer 5.0 Function
1. Display : Absolute Power (μW/cm2) , Relative Power (%), and Accumulative Time (Hours).
2. Output : DC Voltage (1~5V DC), DC Current (4-20mA, 300 ? max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
