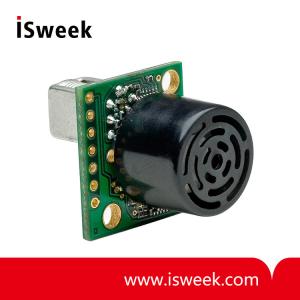

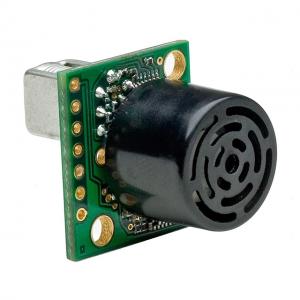

XL-MaxSonar-EZL1 High Performance Ultrasonic Rangefinder - MB1261

? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Virtually no dead zone, objects closer than 25 cm range as 25 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Operational Temperature from 0?C to +65?C (32?F to +149?F)
? Maximum range of 1068 cm (420 inches)

Model Number: MB1261
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MB1261 XL-MaxSonar-EZL1
High Performance Ultrasonic Rangefinder

MB1261 XL-MaxSonar-EZL1 Ultrasonic Rangefinder Product Description

The XL-MaxSonar-EZL1 offers a lower hardware gain and a smaller, narrower detection zone than the MB1260. This makes the XL-MaxSonar-EZL1 a great choice for people detection applications. In addition to detecting small objects, the XL-MaxSonar-EZL1 can also detect large targets to the extended range of 1068 cm (420 inches).

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL-MaxSonar-EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

MB1261 XL-MaxSonar-EZL1 Ultrasonic Rangefinder Product Specifications
? Resolution of 1 cm
? 10Hz reading rate
? 42kHz Ultrasonic sensor measures distance to objects
? RoHS Compliant
? Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
? Virtually no dead zone, objects closer than 25 cm range as 25 cm
? Operates from 3.3-5.5V
? Low 3.4mA average current requirement
? Small, light weight module
? Designed for easy integration into your project or product
? Operational Temperature from 0?C to +65?C (32?F to +149?F)
? Real-time automatic calibration (voltage, humidity, ambient noise)
? Firmware filtering for better noise tolerance and clutter rejection
? 200,000+ Hours Mean Time Between Failure
? Wide and sensitive beam, detects small targets to significant distances
? Maximum range of 1068 cm (420 inches)
? Hardware gain of 2000
? Long range, medium detection zone for small targets

MB1261 XL-MaxSonar-EZL1 Ultrasonic Rangefinder Features and Benefits
? Same beam pattern as the MB1210
? Long range of 1068cm to large targets
? Low power consumption
? Easy to use interface
? Detects smaller objects
? Requires use of less sensors to do same job
? Can detect people up to approximately 11 feet
? 3.3v to 5v operational voltage

MB1261 XL-MaxSonar-EZL1 Ultrasonic Rangefinder Applications and Uses
? Great for people detection
? Security
? Motion detection
? Used with battery power
? Autonomous navigation
? Educational and hobby robotics
? Collision avoidance
? Long range detection

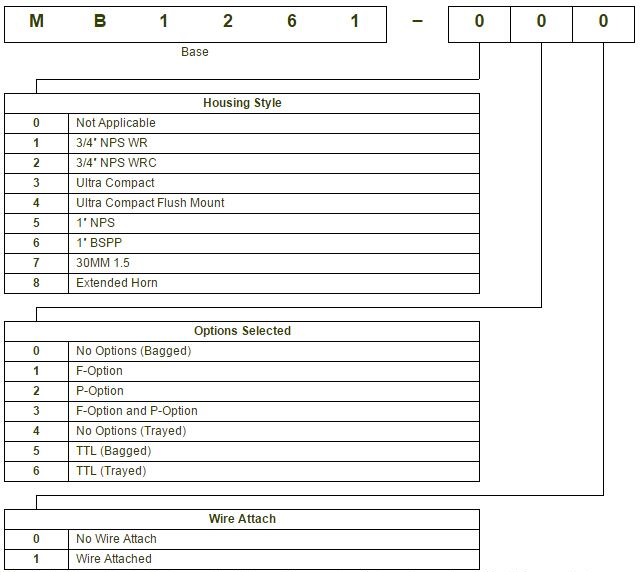

Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
