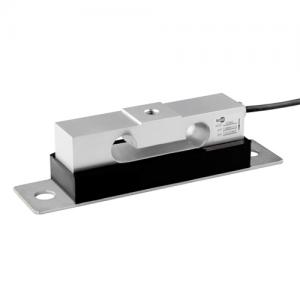

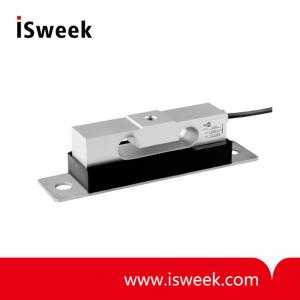

800kg Single Point Parallel Beam Load Cell - F9807

? Available in the capacities 800kg
? Rated output: 2.0±10% mV / V
? Non-linearity: 0.05% F.S.
? Hysteresis: 0.05% F.S.
? Repeatability: 0.05% F.S.
? Single point parallel beam load cell
? Made of anodized aluminum and rubber materials
? Shock-proof design, IP65 protection

Model Number: F9807
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

F9807
Single Point Parallel Beam

F9807 Single Point Parallel Beam Load Cell Size and Capacity

F9807 Single Point Parallel Beam Load Cell Features & Applications
? Single point parallel beam load cell
? Made of anodized aluminum and rubber materials
? Shock-proof design, IP65 protection
? Mainly used for elevator overload monitoring

F9807 Single Point Parallel Beam Load Cell Technical Parameters

Specifications	Technique
Rated output	2.0±10% mV / V
Non-linearity	0.05% F.S.
Hysteresis	0.05% F.S.
Repeatability	0.05% F.S.
Creep (30min)	0.05% F.S.
Temp.effect on output	0.025% F.S. / 10°C
Temp.effect on zero	0.025% F.S. / 10°C
Input impedance	410±30Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	10V
Compensated temp range	-10~40 oC
Operation temp range	-20~60oC
Safe overload	150% F.S.
Ultimate overload	250% F.S.
Cable size	?5×6000 mm
Protection class	IP65
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);
