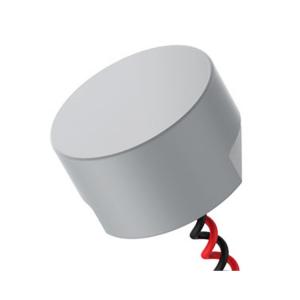

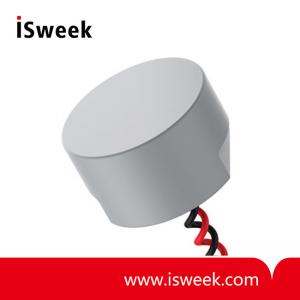

Piezo Ultrasonic Sensor - T/R40-14C279Z-L12-01

? Center frequency: 40±1 KHz
? Echo Sensitivity: ≥90 ?mVp-p
? Decay Time: ≤1.3? ms
? Capacitance: 1800±15% pF (at 25℃,1KHz)?
? Mean Time To Failure: 50000?h?
? Operating Temperature: -40 ~ +85?℃?
? Storage temperature?: -40 ~ +85?℃?

  • Model Number: T/R40-14C279Z-L12-01
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Piezo Ultrasonic Sensor
  • Piezo Ultrasonic Sensor
Mouse over image to zoom
Share:

Product Specification

T/R40-14C279Z-L12-01 Piezo Ultrasonic Sensor Description
Piezo Ultrasonic sensor, also known as reverse radar "probe", is the core component of Parking System. It uses ultrasound to measure the distance between the vehicle and the front and rear obstructions.

T/R40-14C279Z-L12-01 Piezo Ultrasonic Sensor Applications
? Parking assist system
? Blind zone detection

T/R40-14C279Z-L12-01 Piezo Ultrasonic Sensor Electrical Specification

Center frequency
 40±1 KHz
Echo Sensitivity
 ≥90 mVp-p
Decay Time
 ≤1.3 ms
Directivity X-axis
 120±15° (-6dB angle of overall sensitivity)
Directivity Y-axis
 60±10° (-6dB angle of overall sensitivity)
Capacitance
 1800±15% pF  (at 25℃,1KHz)
Allowable Maximum Input Voltage
 140 Vp-p (40KHz) Pulse width 0.5ms, interval 20ms
Mean Time To Failure
 50000h
Operating Temperature
 -40 ~ +85℃
Storage temperature
 -40 ~ +85℃
